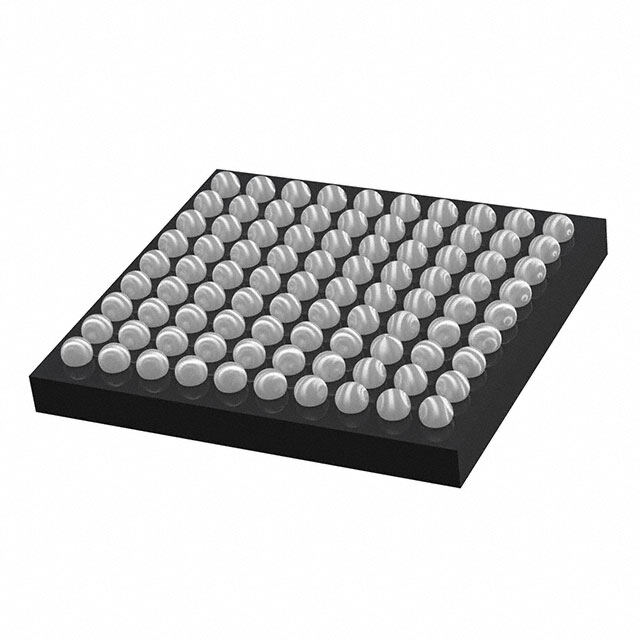

STM32F405OGY6TR
RoHS
RoHS compliant
RoHS compliantPackage 90-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 90WLCSP
PDF
/
Buying Options
Total Price: USD $10.38
Unit Price: USD $10.3752
≥1 USD $10.3752
≥10 USD $9.37552
≥100 USD $8.939392
≥500 USD $7.76204
≥1000 USD $7.413226
≥3000 USD $6.759122
Inventory: 56234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 90-UFBGA, WLCSP
Surface Mount YES
Number of Pins 90
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32F4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 90
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Max Power Dissipation 543mW
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.4mm
Frequency 168MHz
Base Part Number STM32F405
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.8V
Interface CAN, EBI/EMI, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Memory Size 1MB
Oscillator Type Internal
Number of I/O 72
RAM Size 192K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1MB 1M x 8
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Supply Current-Max 102mA
Bit Size 32
Data Converter A/D 13x12b; D/A 2x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
DAC Channels YES
Number of Timers/Counters 14
Address Bus Width 2
ROM (words) 1048576
Core Architecture ARM
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Boundary Scan YES
Low Power Mode YES
Format FLOATING-POINT
Integrated Cache NO
Number of External Interrupts 16
Number of DMA Channels 2
Dimensions
Height Seated (Max) 0.6mm
Length 4.223mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
