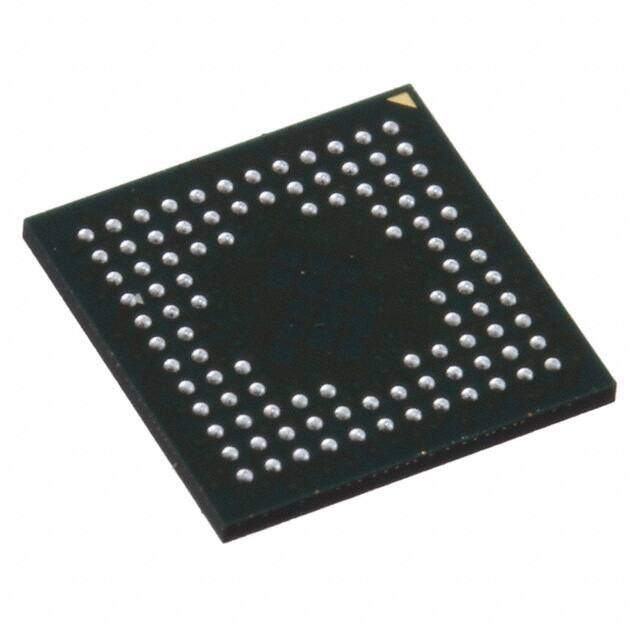

STM32F372VCH6
RoHS
RoHS compliant
RoHS compliantPackage 100-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU 32-Bit ARM Cortex M4 72MHz 256kB MCU FPU
PDF
/
Inventory: 9965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
CPU Family CORTEX-M4F
Core Architecture ARM
Number of Timers/Counters 14
Data Bus Width 32b
Watchdog Timer Yes
Data Converter A/D 1x12b, 1x16b; D/A 1x12b
Bit Size 32
Supply Current-Max 75.7mA
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
Voltage - Supply (Vcc/Vdd) 2V~3.6V
RAM Size 32K x 8
Number of I/O 84
Oscillator Type Internal
Memory Size 256kB
Interface CAN, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Power Supplies 2.5/3.3V
Qualification Status Not Qualified
Pin Count 100
Base Part Number STM32F372
Frequency 72MHz
Reach Compliance Code unknown
Terminal Pitch 0.5mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 434mW
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series STM32F3
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 100
Package / Case 100-UFBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Silver, Tin
