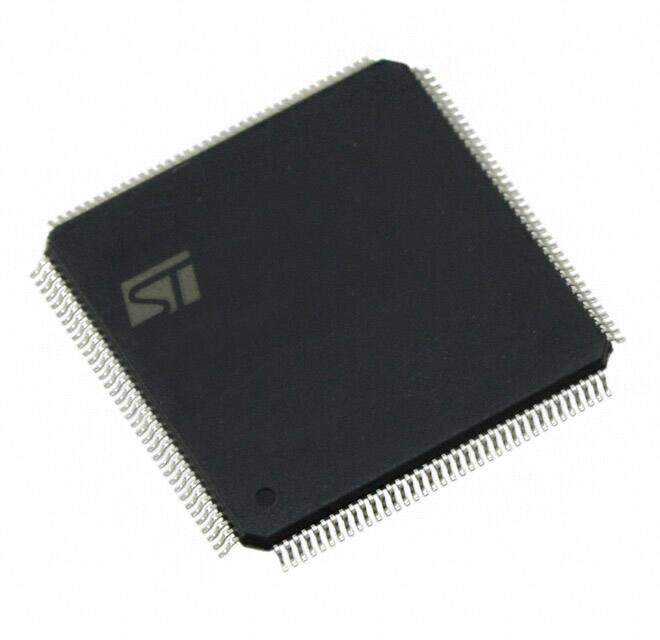

STM32F215ZET6
RoHS
RoHS compliant
RoHS compliantPackage 144-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 512KB FLASH 144LQFP
PDF
/
Buying Options
Total Price: USD $58.19
Unit Price: USD $58.187994
≥1 USD $58.187994
≥10 USD $54.894338
≥100 USD $51.787108
≥500 USD $48.855758
≥1000 USD $46.090341
Inventory: 1604
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 20.2mm
Length 20.2mm
Height 1.45mm
Technical
Number of I2C Channels 3
Number of PWM Channels 6
Number of ADC Channels 24
Number of UART Channels 2
Core Architecture ARM
Number of Timers/Counters 14
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 24x12b; D/A 2x12b
Bit Size 32
Supply Current-Max 81mA
Connectivity CANbus, I2C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG
Program Memory Size 512KB 512K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 132K x 8
Number of I/O 114
Oscillator Type Internal
Memory Size 512kB
Interface CAN, I2C, I2S, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 1.8V
Pin Count 144
Base Part Number STM32F215
Frequency 120MHz
Terminal Pitch 0.5mm
Supply Voltage 2.7V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 500mW
Subcategory Microcontrollers
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series STM32F2
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 144
Surface Mount YES
Package / Case 144-LQFP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
