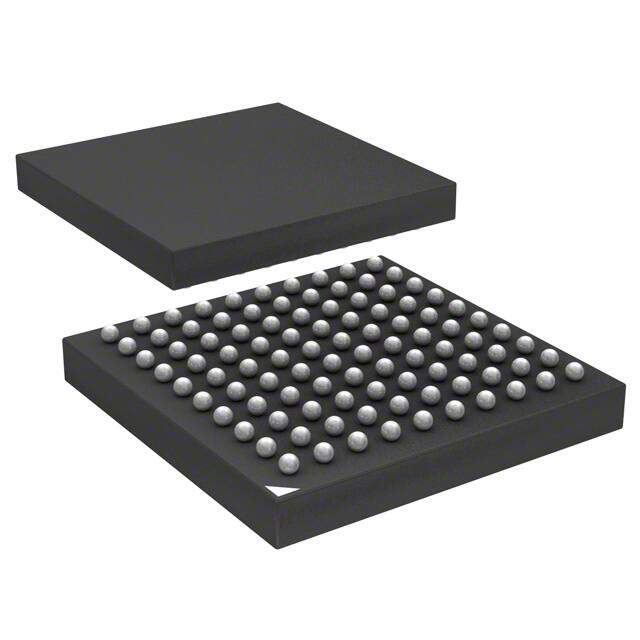

STM32F103VCH6
RoHS
RoHS compliant
RoHS compliantPackage 100-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLASH 100BGA
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 9604
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 10.15mm
Length 10mm
Height 1.085mm
Technical
Number of SPI Channels 3
Number of I2C Channels 2
Number of ADC Channels 16
Core Architecture ARM
Number of Timers/Counters 8
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 16x12b; D/A 2x12b
Bit Size 32
Supply Current-Max 70mA
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2V~3.6V
RAM Size 48K x 8
Number of I/O 80
Oscillator Type Internal
Memory Size 256kB
Interface CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 2V
Pin Count 100
Base Part Number STM32F103
Frequency 72MHz
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 500mW
Subcategory Microcontrollers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series STM32F1
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
