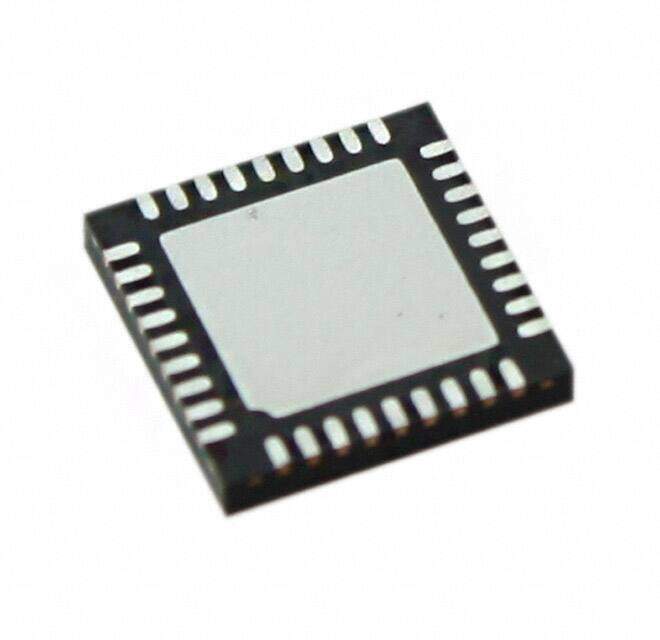

STM32F103T8U7
RoHS
RoHS compliant
RoHS compliantPackage 36-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
STM32F Series 64 kB Flash 20 kB RAM ARM Based 32-Bit Microcontroller - VFQFPN-36
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.048
≥1 USD $4.048
≥10 USD $3.65464
≥100 USD $3.485152
≥500 USD $3.025994
≥1000 USD $2.992994
Inventory: 2487
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6.125mm
Length 6.13mm
Height 950μm
Technical
Number of I2C Channels 1
Number of PWM Channels 6
Number of ADC Channels 10
CPU Family CORTEX-M3
Core Architecture ARM
Number of Timers/Counters 4
Data Bus Width 32b
Watchdog Timer Yes
Data Converter A/D 10x12b
Bit Size 32
Supply Current-Max 50.3mA
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Program Memory Size 64KB 64K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Core Processor ARM? Cortex?-M3
Voltage - Supply (Vcc/Vdd) 2V~3.6V
RAM Size 20K x 8
Number of I/O 26
Oscillator Type Internal
Memory Size 64kB
Interface CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Power Supplies 2.5/3.3V
Base Part Number STM32F103
Frequency 72MHz
Terminal Pitch 0.5mm
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 1W
Subcategory Microcontrollers
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series STM32F1
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Number of Pins 36
Surface Mount YES
Package / Case 36-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 10 Weeks
