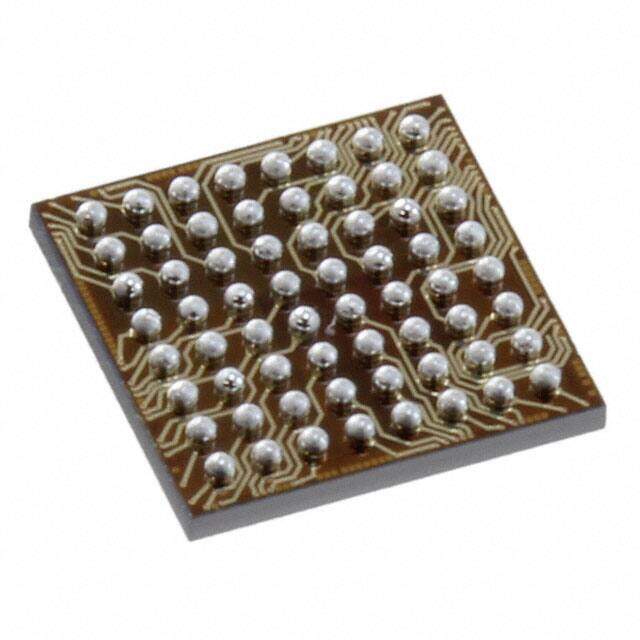

STM32F103REY6TR
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU 32-Bit Cortex 64Kb Performance Line
PDF
/
Buying Options
Total Price: USD $9.5
Unit Price: USD $9.504
≥1 USD $9.504
≥10 USD $8.58616
≥100 USD $8.187168
≥500 USD $7.108816
≥1000 USD $6.789341
≥3000 USD $6.19029
Inventory: 733
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Contact Plating Gold, Tin
Mounting Type Surface Mount
Package / Case 64-UFBGA, WLCSP
Surface Mount YES
Number of Pins 64
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32F1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 64
ECCN Code 3A991.A.2
Number of DMA Channels 12
Number of External Interrupts 16
Integrated Cache NO
Format FIXED POINT
Low Power Mode YES
Boundary Scan YES
CPU Family CORTEX-M3
On Chip Program ROM Width 8
Core Architecture ARM
Number of Timers/Counters 8
DAC Channels YES
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 16x12b; D/A 2x12b
Bit Size 32
Supply Current-Max 69mA
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Program Memory Size 512KB 512K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2V~3.6V
RAM Size 64K x 8
Number of I/O 51
Oscillator Type Internal
Memory Size 512kB
Interface CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 64
Base Part Number STM32F103
Frequency 72MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 444mW
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 4.466mm
Height Seated (Max) 0.635mm
