ST7FLIT19BF1U6
RoHS
RoHS compliant

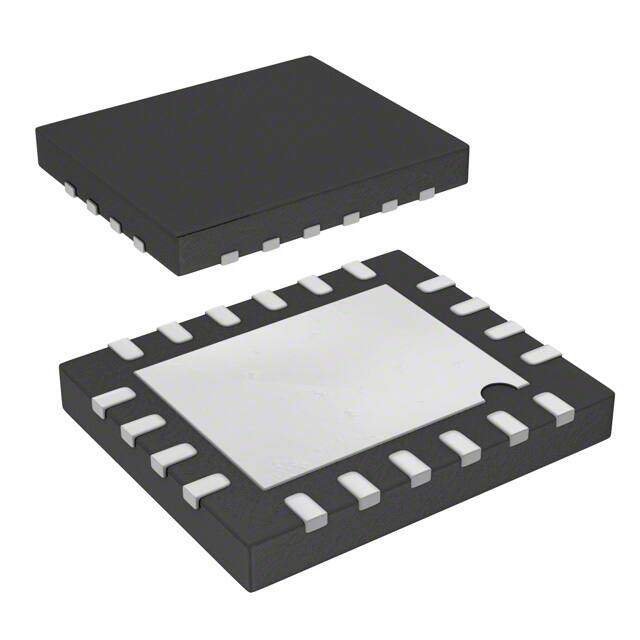

RoHS compliantPackage 20-VQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 4KB FLASH 20QFN
PDF
/
Inventory: 7701
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 20-VQFN Exposed Pad
Surface Mount YES
Number of Pins 20
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series ST7
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
Max Power Dissipation 300mW
Technology CMOS
Terminal Position QUAD
Supply Voltage 5V
Terminal Pitch 0.8mm
Frequency 8MHz
Base Part Number ST7FL
Pin Count 20
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 3.3V
Memory Size 4kB
Oscillator Type Internal
Number of I/O 17
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Peripherals LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 4KB 4K x 8
Connectivity SPI
Bit Size 8
Data Converter A/D 7x10b
Watchdog Timer Yes
Access Time 8 μs
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 4
EEPROM Size 128 x 8
On Chip Program ROM Width 8
Dimensions
Height Seated (Max) 1mm
Length 5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
