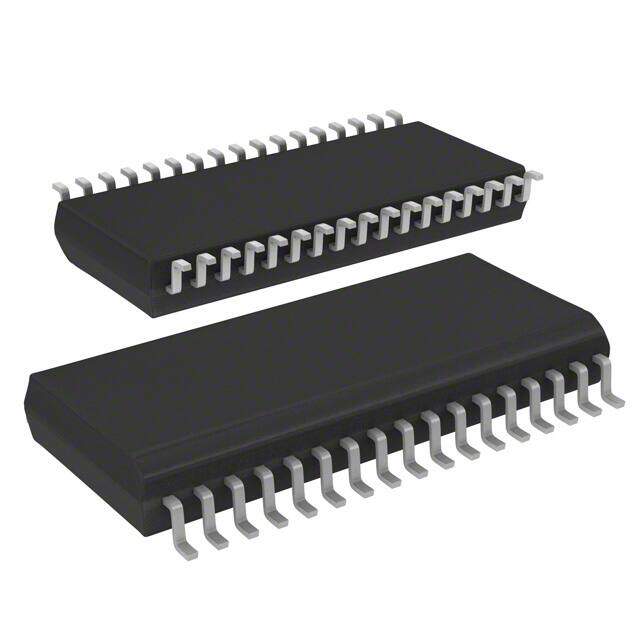

ST72F63BK4M1
RoHS
RoHS compliant
RoHS compliantPackage 34-BSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU Flash 16K USB/SPI/SC
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.6353
≥1 USD $2.6353
≥10 USD $2.1622
≥100 USD $2.09475
≥500 USD $2.0273
≥1000 USD $1.95985
Inventory: 55449
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 34-BSOP (0.295, 7.50mm Width)
Number of Pins 34
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Series ST7
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 34
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Microcontrollers
Max Power Dissipation 500mW
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Frequency 8MHz
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ST72F63
Pin Count 34
Operating Supply Voltage 5V
Power Supplies 5V
Interface I2C, SCI, USB
Memory Size 16kB
Oscillator Type Internal
Number of I/O 19
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Peripherals DMA, LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 16KB 16K x 8
Connectivity I2C, SCI, USB
Bit Size 8
Data Converter A/D 8x8b
Access Time 8 μs
Has ADC YES
DMA Channels YES
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 1
Number of Programmable I/O 27
Dimensions
Height Seated (Max) 2.642mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
