ST62E65CF1
RoHS
RoHS compliant

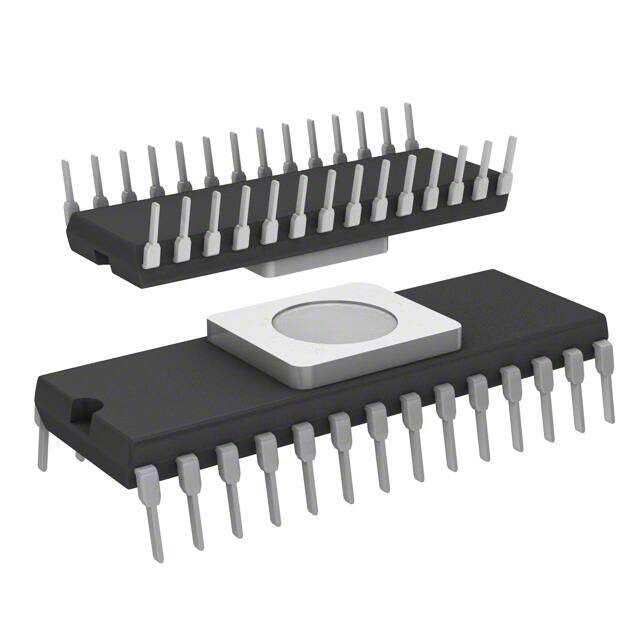

RoHS compliantPackage 28-CDIP (0.600, 15.24mm) Window
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 3.8KB EPROM/UV 28DIP
PDF
/
Buying Options
Total Price: USD $25.89
Unit Price: USD $25.88655
≥1 USD $25.88655
≥10 USD $21.2401
≥100 USD $20.577
≥500 USD $19.91295
≥1000 USD $19.2489
Inventory: 1604
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 28-CDIP (0.600, 15.24mm) Window
Number of Pins 28
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Series ST6
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Terminal Finish Gold (Au)
Additional Feature ALSO OPERATES AT 3V MINIMUM SUPPLY
Subcategory Microcontrollers
Technology HCMOS
Terminal Position DUAL
Supply Voltage 4V
Frequency 8MHz
Base Part Number ST62E
Pin Count 28
Supply Voltage-Max (Vsup) 6V
Power Supplies 3.3/5V
Supply Voltage-Min (Vsup) 3.6V
Memory Size 3.8kB
Oscillator Type Internal
Number of I/O 21
RAM Size 128 x 8
Memory Type EPROM
Voltage - Supply (Vcc/Vdd) 3V~6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Number of Bits 8
Peripherals LED, LVD, POR, WDT
Program Memory Type EPROM, UV
Core Size 8-Bit
Program Memory Size 3.8KB 3.8K x 8
Connectivity SPI
Supply Current-Max 7mA
Bit Size 8
Data Converter A/D 13x8b
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 2
Core Architecture PIC
EEPROM Size 128 x 8
On Chip Program ROM Width 8
ROM Programmability UVPROM
Dimensions
Height Seated (Max) 4.17mm
Length 35.56mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
