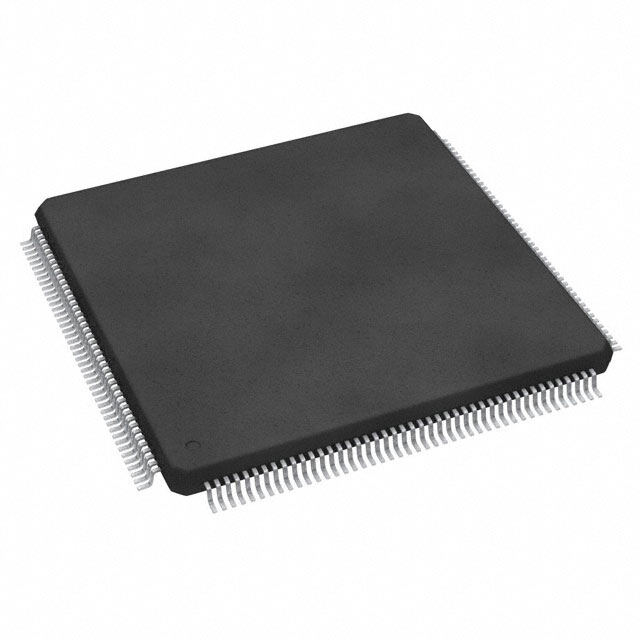

SPC58NE84E7QMHAR
RoHS
RoHS compliant
RoHS compliantPackage 176-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
LQFP 176L 24X24X1.4
PDF
/
Buying Options
Total Price: USD $36.57
Unit Price: USD $36.5728
≥1 USD $36.5728
≥10 USD $34.12376
≥100 USD $32.69376
≥500 USD $29.628632
≥1000 USD $28.606899
Inventory: 489
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 176-LQFP Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, SPC58
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 176
Additional Feature ALSO AVAILABLE GTM(40 I/P CH, 104 O/P CH), CAN(8)
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.2V
Terminal Pitch 0.5mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SPC58N
JESD-30 Code S-PQFP-G176
Supply Voltage-Max (Vsup) 1.26V
Supply Voltage-Min (Vsup) 1.14V
Oscillator Type Internal
Number of I/O 64
Speed 180MHz
RAM Size 608K x 8
Voltage - Supply (Vcc/Vdd) 1.2V 3.3V 5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor e200z4
Peripherals DMA
Clock Frequency 40MHz
Program Memory Type FLASH
Core Size 32-Bit Tri-Core
Program Memory Size 6MB 6M x 8
Connectivity CANbus, Ethernet, FlexRay, I2C, LINbus, SPI
Bit Size 32
Has ADC YES
Screening Level AEC-Q100; ISO 26262
On Chip Program ROM Width 8
EEPROM Size 256K x 8
ROM (words) 6291456
DAC Channels NO
PWM Channels NO
DMA Channels YES
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 24mm
Length 24mm
Height Seated (Max) 1.6mm
