SPC564A80B4CFAR
RoHS
RoHS compliant

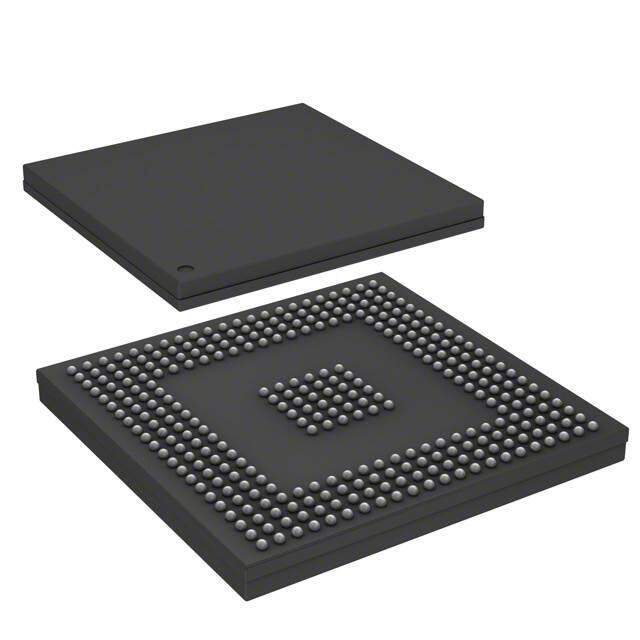

RoHS compliantPackage 324-BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32-bit Microcontrollers - MCU 32-BIT Embedded MCU 150 MHz, 4Mbyte
PDF
/
Buying Options
Total Price: USD $159.71
Unit Price: USD $159.7102
≥1 USD $159.7102
≥10 USD $143.18875
Inventory: 703
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 324-BGA
Number of Pins 324
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, SPC56
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 324
Terminal Finish Tin/Lead/Silver (Sn/Pb/Ag)
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Max Power Dissipation 1.5W
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.2V
Terminal Pitch 1mm
Frequency 150MHz
Base Part Number SPC564A
Pin Count 324
Supply Voltage-Max (Vsup) 1.32V
Power Supplies 1.23.35V
Supply Voltage-Min (Vsup) 1.14V
Interface CAN, EBI/EMI, LIN, SCI, SPI
Memory Size 4MB
Oscillator Type Internal
Number of I/O 190
RAM Size 192K x 8
Voltage - Supply (Vcc/Vdd) 1.14V~1.32V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor e200z4
Peripherals DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 4MB 4M x 8
Connectivity CANbus, EBI/EMI, LINbus, SCI, SPI
Supply Current-Max 445mA
Bit Size 32
Data Converter A/D 40x12b
Watchdog Timer Yes
Number of Programmable I/O 120
On Chip Program ROM Width 32
ROM (words) 1048576
Address Bus Width 32
Number of Timers/Counters 9
DAC Channels NO
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 23mm
Height Seated (Max) 1.77mm
