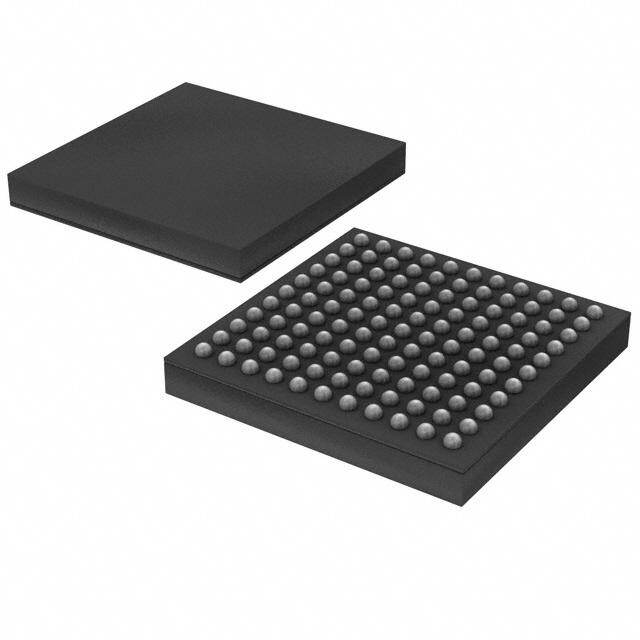

EFM32WG395F128-BGA120
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 128KB FLASH 120BGA
PDF
/
Inventory: 8309
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Package / Case BGA
Number of Pins 120
Surface Mount YES
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 7mm
Height Seated (Max) 1mm
Technical
Number of GPIO 93
Number of ADC Channels 6
Core Architecture ARM
ROM (words) 131072
Address Bus Width 28
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Frequency (Max) 48MHz
Bit Size 32
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Memory Type FLASH
RAM Size 32kB
Number of I/O 93
Oscillator Type Internal
Memory Size 128kB
Max Supply Voltage 3.8V
Interface EBI/EMI, I2C, I2S, IrDA, SPI, UART, USART, USB
Temperature Grade INDUSTRIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 48MHz
Terminal Pitch 0.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code 3A001.A.3
Number of Terminations 120
Published 2013
