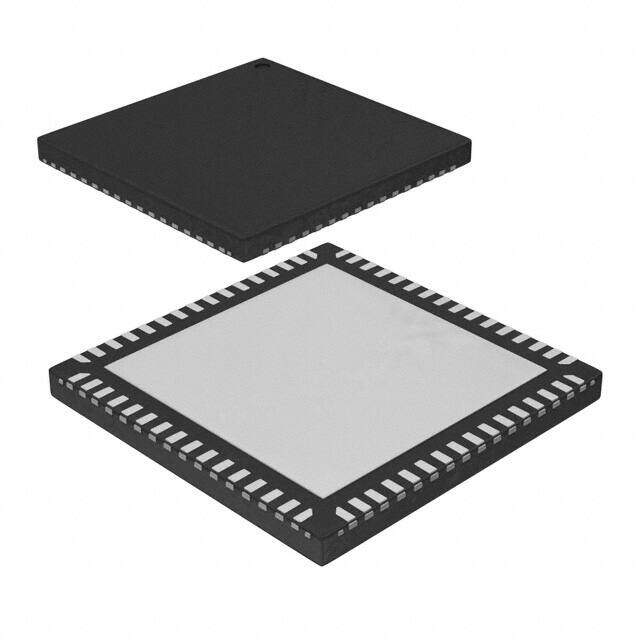

EFM32TG230F8-QFN64
RoHS
/
Package 64-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 8KB FLASH 64QFN
PDF
/
Inventory: 2661
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 64
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2013
Series Tiny Gecko
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3V
Terminal Pitch 0.5mm
Frequency 32MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.8V
Interface EBI/EMI, I2C, I2S, IrDA, SPI, UART, USART
Memory Size 8kB
Oscillator Type Internal
Number of I/O 56
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 1.85V~3.8V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M3
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 8KB 8K x 8
Connectivity EBI/EMI, I2C, IrDA, SmartCard, SPI, UART/USART
Bit Size 32
Data Converter A/D 8x12b; D/A 2x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
DAC Channels YES
Number of Timers/Counters 1
Core Architecture ARM
CPU Family CORTEX-M3
Number of Programmable I/O 56
RAM (bytes) 2048
Dimensions
Height Seated (Max) 0.9mm
Length 9mm
Compliance
RoHS Status RoHS Compliant
