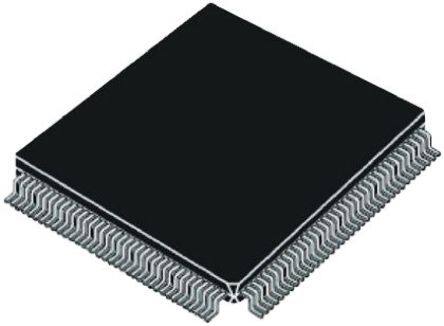

UPD70F3318YGJ-UEN-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-bit V850ES RISC 256KB Flash 5V 144-Pin LQFP
PDF
/
Inventory: 2676
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
ROM Programmability FLASH
RAM (bytes) 16384
External Data Bus Width 16
CPU Family V850
ROM (words) 262144
Address Bus Width 24
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Bit Size 32
Supply Current-Max 75mA
Clock Frequency 10MHz
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Speed 20 MHz
Number of I/O 128
Supply Voltage-Min (Vsup) 2.7V
Temperature Grade INDUSTRIAL
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
JESD-30 Code S-PQFP-G144
Pin Count 144
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Additional Feature ALSO OPERATES AT 2.7 V MINIMUM SUPPLY @ 8 MHZ
Terminal Finish TIN BISMUTH
Number of Terminations 144
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e6
Published 2005
Physical
Surface Mount YES
