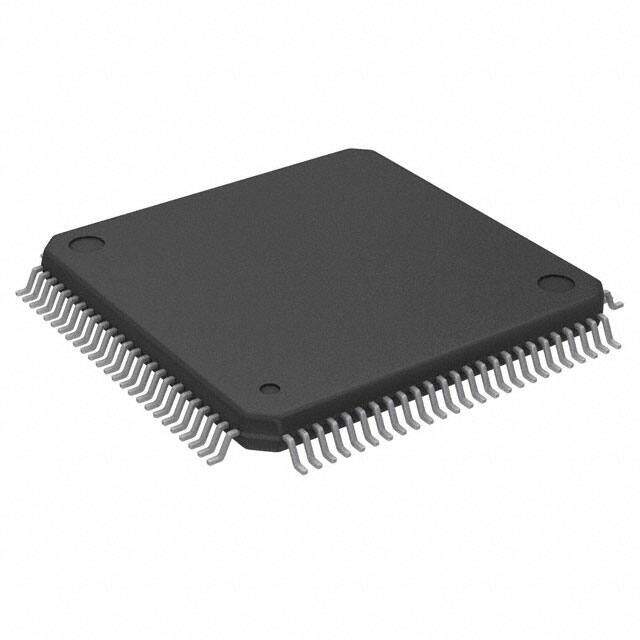

R5F565N9ADFP#30
RoHS
RoHS compliant
RoHS compliantPackage 100-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 100QFP
PDF
/
Buying Options
Total Price: USD $5.39
Unit Price: USD $5.3944
≥1 USD $5.3944
≥10 USD $4.87608
≥100 USD $4.649568
≥500 USD $4.037053
≥1000 USD $3.992982
Inventory: 354
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Technical
External Data Bus Width 16
Address Bus Width 24
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 22x12b; D/A 1x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Program Memory Size 1MB 1M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 24MHz
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RXv2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
RAM Size 256K x 8
Speed 120MHz
Number of I/O 78
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 100
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position QUAD
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RX65N
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-LQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
