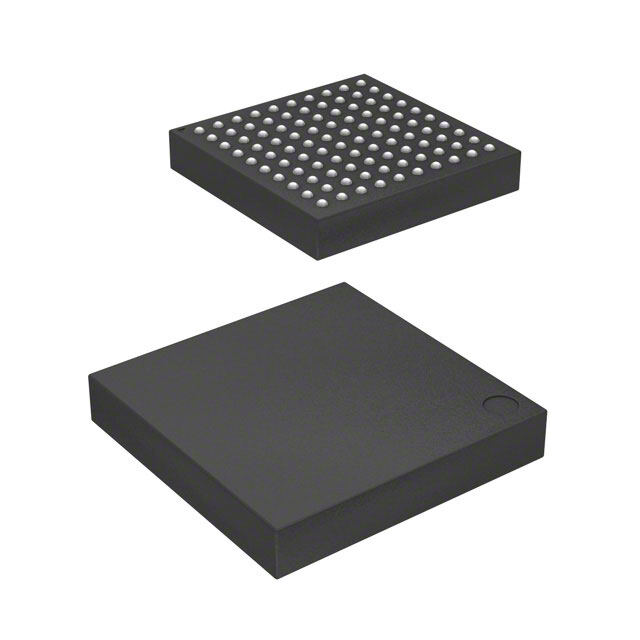

R5F5651EDDLJ#20
RoHS
RoHS compliant
RoHS compliantPackage 100-TFLGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 100TFLGA
PDF
/
Buying Options
Total Price: USD $9.81
Unit Price: USD $9.812
≥1 USD $9.812
≥10 USD $8.86688
≥100 USD $8.454336
≥500 USD $7.34074
≥1000 USD $7.010854
≥3000 USD $6.39225
Inventory: 499
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1.05mm
Technical
RAM (bytes) 655360
External Data Bus Width 16
On Chip Program ROM Width 8
EEPROM Size 32K x 8
ROM (words) 2097152
Address Bus Width 24
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 22x12b; D/A 1x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 24MHz
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RXv2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
RAM Size 640K x 8
Speed 120MHz
Number of I/O 78
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code S-XBGA-B100
Pin Count 100
Terminal Pitch 0.65mm
Supply Voltage 3.3V
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Additional Feature ALSO HAVING 2-CH EXDMA CONTROLLER
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RX651
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 100-TFLGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
