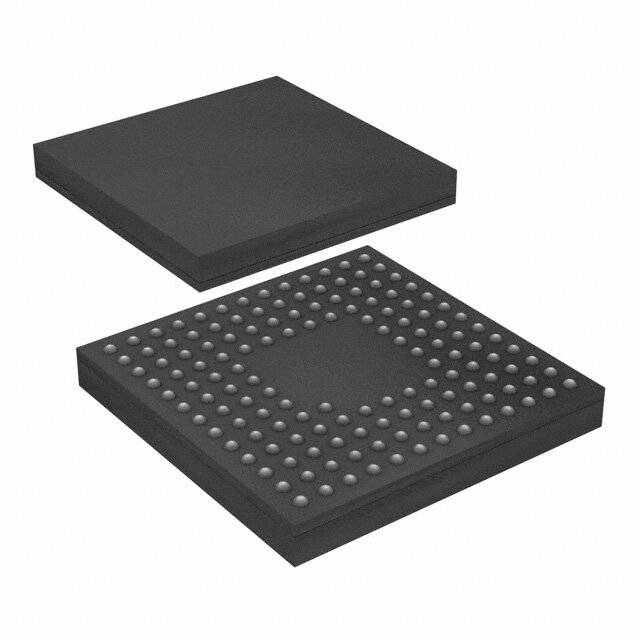

R5F563NDCDLK#U0
RoHS
RoHS compliant
RoHS compliantPackage 145-TFLGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1.5MB FLASH 145LGA
PDF
/
Inventory: 8396
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case 145-TFLGA
Surface Mount YES
Number of Pins 145
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2014
Series RX600
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 145
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3V
Terminal Pitch 0.5mm
Frequency 100MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 145
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 2.7V
Interface CAN, EBI/EMI, Ethernet, I2C, LIN, SCI, SPI, USB
Memory Size 1.5MB
Oscillator Type Internal
Number of I/O 111
RAM Size 128K x 8
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor RX
Peripherals DMA, LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1.5MB 1.5M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SPI, USB
Supply Current-Max 100mA
Bit Size 32
Data Converter A/D 8x10b, 21x12b; D/A 2x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Address Bus Width 24
ROM (words) 1572864
EEPROM Size 32K x 8
On Chip Program ROM Width 8
CPU Family RX
External Data Bus Width 16
RAM (bytes) 131072
Dimensions
Height Seated (Max) 1.05mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
