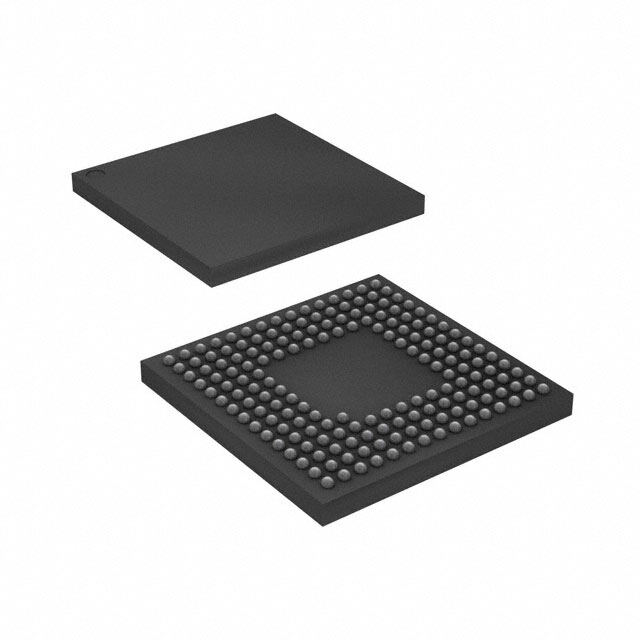

R5F56317DDLC#U0
RoHS
RoHS compliant
RoHS compliantPackage 177-TFLGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 384KB FLASH 177LGA
PDF
/
Inventory: 5379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case 177-TFLGA
Surface Mount YES
Number of Pins 177
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2014
Series RX600
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 177
Terminal Position BOTTOM
Terminal Form BUTT
Supply Voltage 3V
Terminal Pitch 0.5mm
Frequency 100MHz
Pin Count 177
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 2.7V
Interface CAN, EBI/EMI, I2C, LIN, SCI, SPI, USB
Memory Size 384kB
Oscillator Type Internal
Number of I/O 133
RAM Size 128K x 8
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor RX
Peripherals DMA, LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 384KB 384K x 8
Connectivity CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB
Bit Size 32
Data Converter A/D 8x10b, 21x12b; D/A 2x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
Address Bus Width 24
EEPROM Size 32K x 8
External Data Bus Width 32
Dimensions
Length 8mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
