R5F5630BDDBG#U0
RoHS
RoHS compliant

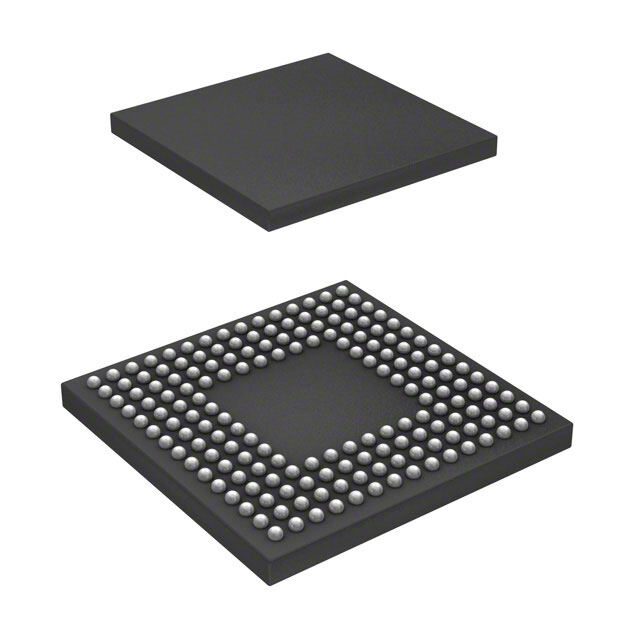

RoHS compliantPackage 176-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 176LFBGA
PDF
/
Inventory: 5230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 13mm
Height Seated (Max) 1.4mm
Technical
Number of Programmable I/O 149
EEPROM Size 32K x 8
Address Bus Width 24
Number of Timers/Counters 32
DAC Channels YES
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 8x10b, 21x12b; D/A 2x10b
Bit Size 32
Connectivity CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB
Program Memory Size 1MB 1M x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RX
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
RAM Size 96K x 8
Number of I/O 148
Oscillator Type Internal
Memory Size 1MB
Interface CAN, EBI/EMI, I2C, LIN, SCI, SPI, UART, USB
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 176
Frequency 100MHz
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Number of Terminations 176
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RX600
Published 2014
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 176
Surface Mount YES
Package / Case 176-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
