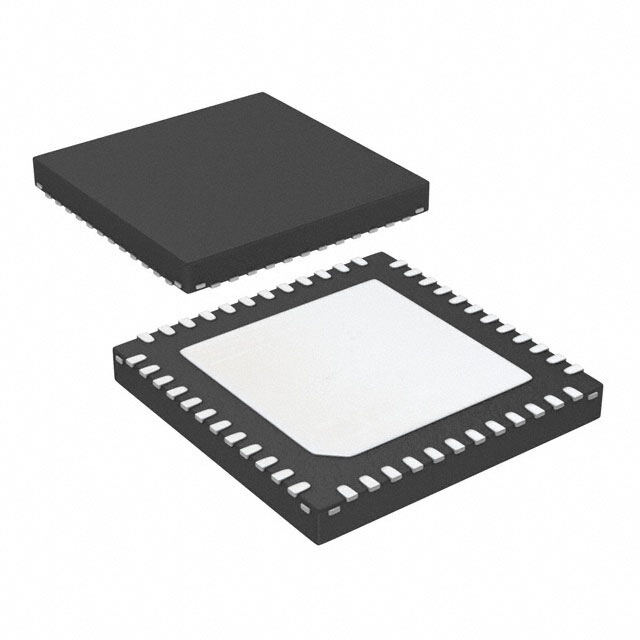

R5F52317ADNE#U0
RoHS
RoHS compliant
RoHS compliantPackage 48-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 384KB FLASH 48HWQFN
PDF
/
Inventory: 7601
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 0.8mm
Technical
RAM (bytes) 65536
On Chip Program ROM Width 8
EEPROM Size 8K x 8
ROM (words) 393216
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 8x12b
Bit Size 32
Connectivity CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG
Program Memory Size 384KB 384K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RXv2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 64K x 8
Number of I/O 30
Oscillator Type Internal
Memory Size 384kB
Interface CAN, I2C, IrDA, SCI, SD, SDIO, SPI, USB
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 48
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 54MHz
Terminal Pitch 0.5mm
Supply Voltage 2V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RX200
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 48
Surface Mount YES
Package / Case 48-WFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
