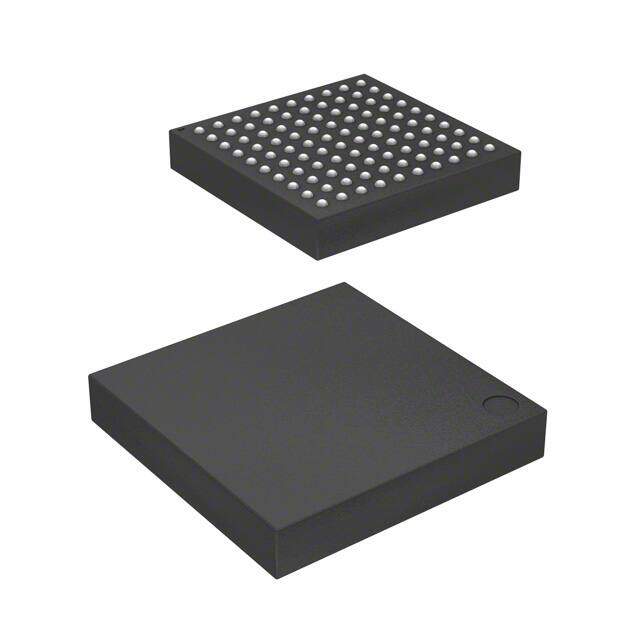

R5F52316CDLA#20
RoHS
RoHS compliant
RoHS compliantPackage 100-TFLGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLASH 100TLGA
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.324
≥1 USD $5.324
≥10 USD $4.78104
≥100 USD $4.51968
≥500 USD $3.916994
≥1000 USD $3.716064
≥3000 USD $3.334426
Inventory: 627
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.5mm
Length 5.5mm
Height Seated (Max) 1.05mm
Technical
RAM (bytes) 32768
External Data Bus Width 16
On Chip Program ROM Width 8
EEPROM Size 8K x 8
ROM (words) 262144
Address Bus Width 24
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 24x12b; D/A 2x12b
Bit Size 32
Connectivity EBI/EMI, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 20MHz
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RXv2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 32K x 8
Speed 54MHz
Number of I/O 79
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 100
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 2V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RX200
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-TFLGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
