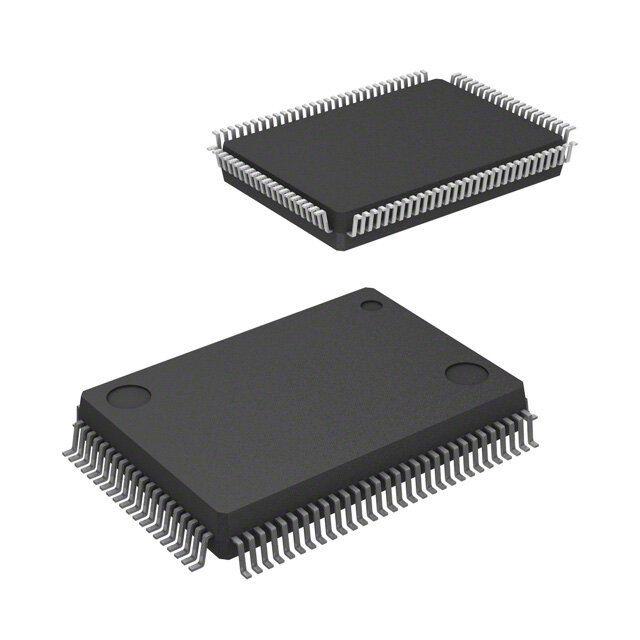

R5F2L3A8CNFA#U0
RoHS
RoHS compliant
RoHS compliantPackage 100-BQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 64KB FLASH 100QFP
PDF
/
Inventory: 4483
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Number of UART Channels 3
CPU Family R8C
Number of Timers/Counters 7
Data Bus Width 16b
Watchdog Timer Yes
Data Converter A/D 20x10b; D/A 2x8b
Bit Size 16
Supply Current-Max 15mA
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals LCD, POR, PWM, Voltage Detect, WDT
Core Processor R8C
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 8K x 8
Number of I/O 88
Oscillator Type Internal
Memory Size 64kB
Interface I2C, LIN, UART, USART
Power Supplies 2/5V
Pin Count 100
Base Part Number R5F2L3A8
Frequency 20MHz
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 500mW
Subcategory Microcontrollers
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series R8C/Lx/3AC
Published 2011
Packaging Tray
Operating Temperature -20°C~85°C TA
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-BQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 24 Weeks
