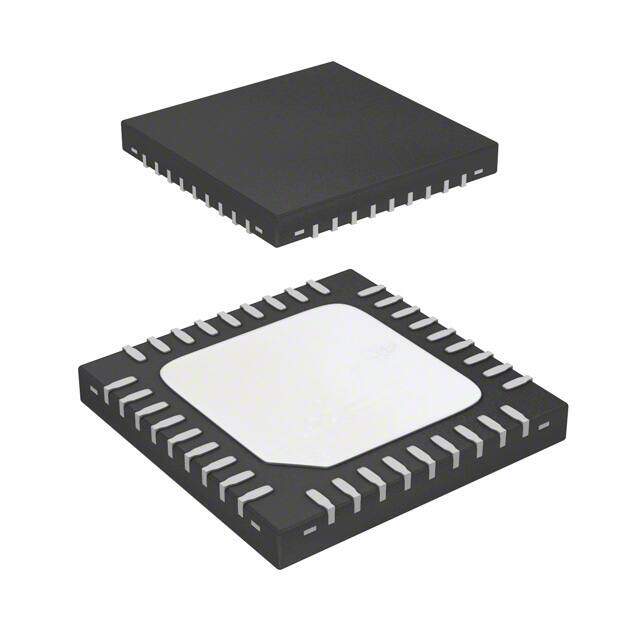

R5F213J6CNNP#U0
RoHS
RoHS compliant
RoHS compliantPackage 36-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 32KB FLASH 36HWQFN
PDF
/
Buying Options
Total Price: USD $239.57
Unit Price: USD $239.5653
≥1 USD $239.5653
≥10 USD $214.78265
Inventory: 701
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 36-WFQFN Exposed Pad
Number of Pins 36
Technical
Operating Temperature -20°C~85°C TA
Packaging Tray
Published 2010
Series R8C/3x/3JC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 36
Subcategory Microcontrollers
Max Power Dissipation 500mW
Technology CMOS
Terminal Position QUAD
Supply Voltage 3V
Frequency 20MHz
Base Part Number R5F213
Pin Count 36
Interface I2C, LIN, UART, USART
Memory Size 32kB
Oscillator Type Internal
Number of I/O 31
RAM Size 2.5K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor R8C
Peripherals POR, PWM, Voltage Detect, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 32KB 32K x 8
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Bit Size 16
Data Converter A/D 10x10b; D/A 2x8b
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 16b
PWM Channels YES
Number of Timers/Counters 5
CPU Family R8C
Number of UART Channels 3
Number of ADC Channels 10
Number of I2C Channels 2
Dimensions
Height 750μm
Length 6.1mm
Width 6.1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
