R5F104ECANA#W0
RoHS
RoHS compliant

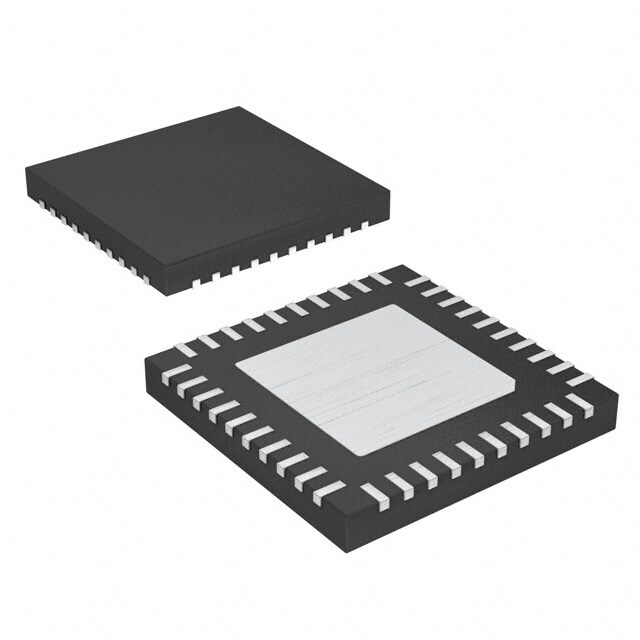

RoHS compliantPackage 40-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 32KB FLASH 40HWQFN
PDF
/
Inventory: 5818
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.8mm
Technical
On Chip Program ROM Width 8
EEPROM Size 4K x 8
ROM (words) 32768
DAC Channels NO
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 9x8/10b
Bit Size 16
Connectivity CSI, I2C, LINbus, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RL78
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.6V~5.5V
RAM Size 4K x 8
Number of I/O 28
Oscillator Type Internal
Memory Size 32kB
Interface I2C, LIN, UART, USART
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 40
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 32MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Additional Feature ALSO OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHZ
Number of Terminations 40
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RL78/G14
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 40
Surface Mount YES
Package / Case 40-WFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
