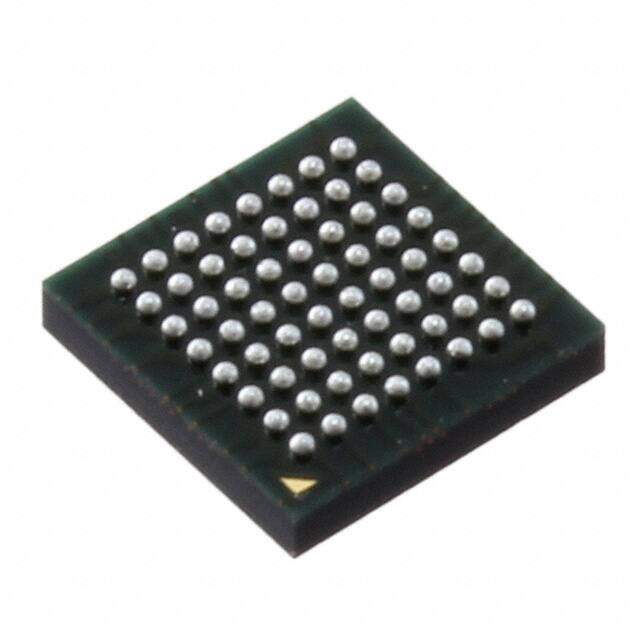

R5F100LJABG#U0
RoHS
RoHS compliant
RoHS compliantPackage 64-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 256KB FLASH 64VFBGA
PDF
/
Buying Options
Total Price: USD $43.73
Unit Price: USD $43.726065
≥1 USD $43.726065
≥10 USD $41.251004
≥100 USD $38.916042
≥500 USD $36.713242
≥1000 USD $34.635138
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.99mm
Technical
On Chip Program ROM Width 8
EEPROM Size 8K x 8
ROM (words) 262144
Number of Timers/Counters 3
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 12x8/10b
Bit Size 16
Connectivity CSI, I2C, LINbus, UART/USART
Program Memory Size 256KB 256K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RL78
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.6V~5.5V
RAM Size 20K x 8
Number of I/O 48
Oscillator Type Internal
Memory Size 256kB
Interface I2C, LIN, SCI, UART, USART
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 64
Base Part Number R5F100
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 32MHz
Terminal Pitch 0.4mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Additional Feature IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY @ LOW-VOLTAGE MAIN MODE
Number of Terminations 64
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series RL78/G13
Published 2012
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 64
Package / Case 64-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
