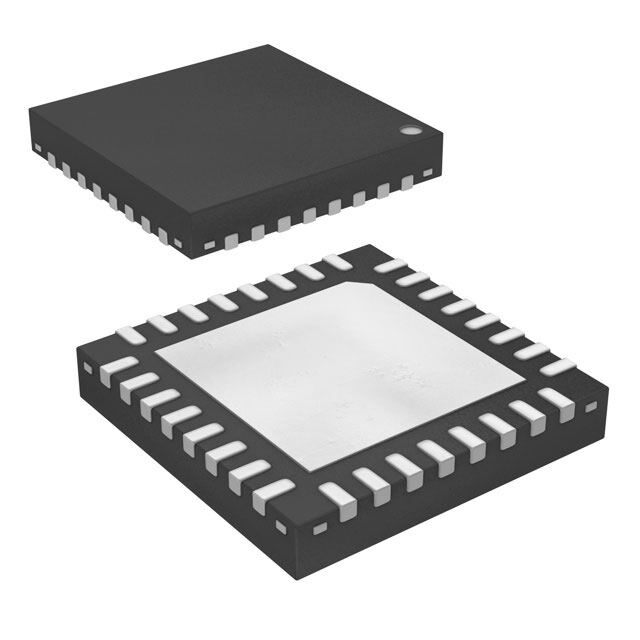

R5F100BAANA#U0
RoHS
RoHS compliant
RoHS compliantPackage 32-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 16-bit RL78 RL78 CISC 16KB Flash 32-Pin HWQFN EP
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.4168
≥1 USD $2.4168
≥10 USD $1.98265
≥100 USD $1.9209
≥500 USD $1.85915
≥1000 USD $1.7974
Inventory: 1339
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 5mm
Length 5mm
Height 750μm
Technical
Number of I2C Channels 4
Number of PWM Channels 3
Number of ADC Channels 8
EEPROM Size 4K x 8
Number of Timers/Counters 1
Data Bus Width 16b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 8x8/10b
Bit Size 16
Connectivity CSI, I2C, LINbus, UART/USART
Program Memory Size 16KB 16K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RL78
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.6V~5.5V
RAM Size 2K x 8
Number of I/O 22
Oscillator Type Internal
Memory Size 16kB
Interface I2C, LIN, UART, USART
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 32
Base Part Number R5F100
Frequency 32MHz
Supply Voltage 3V
Terminal Position QUAD
Technology CMOS
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RL78/G13
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 32
Package / Case 32-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
Alternative Model
