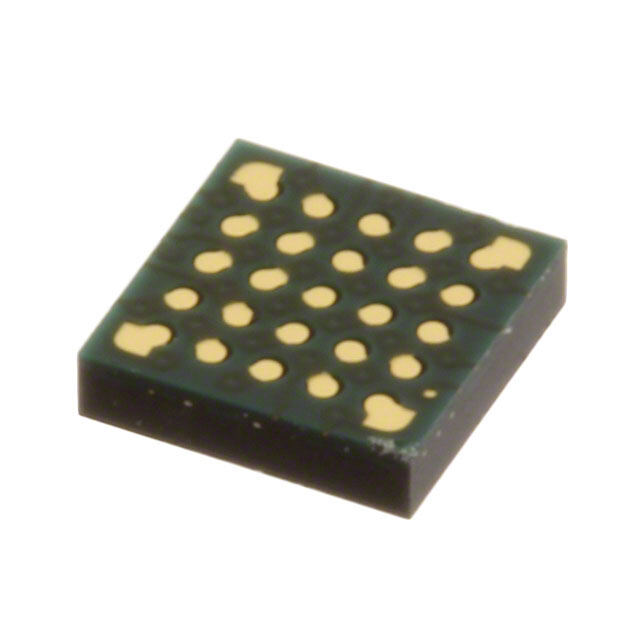

R5F1008EALA#W0
RoHS
RoHS compliant
RoHS compliantPackage 25-WFLGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
RL78 Series 16 Bit 32 MHz 4 kB RAM 64 kB Flash 15 I/O Microcontroller - FLGA-25
PDF
/
Inventory: 1193
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.76mm
Technical
On Chip Program ROM Width 8
EEPROM Size 4K x 8
ROM (words) 65536
Number of Timers/Counters 2
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 6x8/10b
Bit Size 16
Connectivity CSI, I2C, LINbus, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RL78
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.6V~5.5V
RAM Size 4K x 8
Number of I/O 15
Oscillator Type Internal
Memory Size 64kB
Interface I2C, UART, USART
Operating Supply Voltage 5.5V
Pin Count 25
Base Part Number R5F1008
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 32MHz
Terminal Pitch 0.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Additional Feature IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY @ LOW-VOLTAGE MAIN MODE
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series RL78/G13
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 25
Surface Mount YES
Package / Case 25-WFLGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
