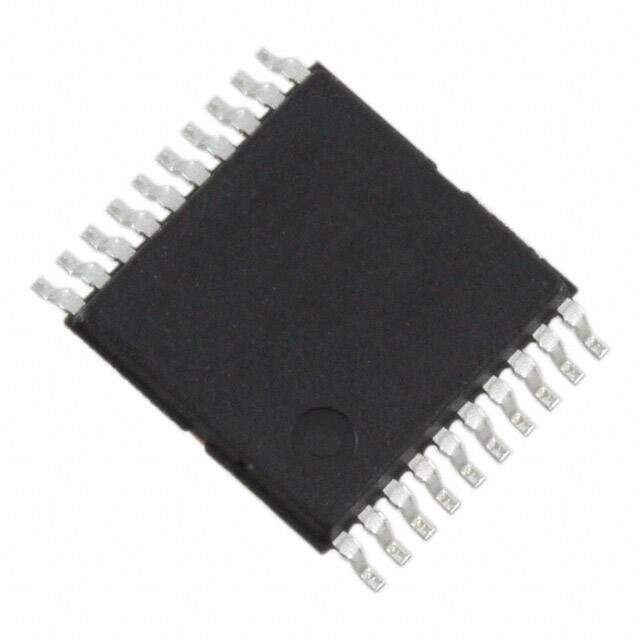

R5F1006EASP#30
RoHS
RoHS compliant
RoHS compliantPackage 20-LSSOP (0.240, 6.10mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 64KB FLASH 20LSSOP
PDF
/
Inventory: 2464
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6.1mm
Length 9.85mm
Technical
EEPROM Size 4K x 8
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 6x8/10b
Bit Size 16
Connectivity CSI, I2C, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 16-Bit
Program Memory Type FLASH
Clock Frequency 20MHz
Peripherals DMA, LVD, POR, PWM, WDT
Core Processor RL78
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.6V~5.5V
RAM Size 2K x 8
Speed 32MHz
Number of I/O 13
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 20
Terminal Pitch 0.65mm
Supply Voltage 3V
Terminal Form GULL WING
Terminal Position DUAL
Number of Terminations 30
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series RL78/G13
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 20-LSSOP (0.240, 6.10mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
