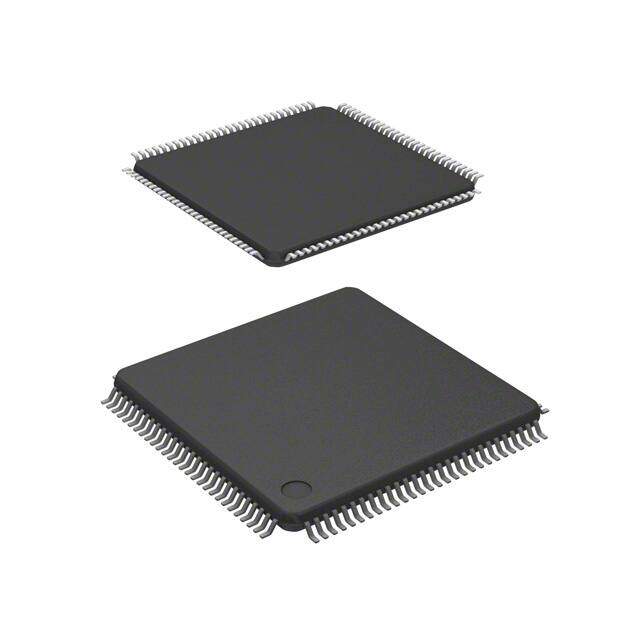

DF70844AN80FPV image
Favorite
DF70844AN80FPV image
Favorite
RoHS
RoHS RoHS compliant
Package 112-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 32BIT 256KB FLASH 112LQFP
PDF
/
Inventory: 5513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Number of UART Channels 4
Number of Timers/Counters 11
Data Bus Width 32b
Access Time 80 μs
Data Converter A/D 8x10b
Connectivity EBI/EMI, FIFO, I2C, SCI, SSU
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, POR, PWM, WDT
Core Processor SH-2
Voltage - Supply (Vcc/Vdd) 3V~5.5V
RAM Size 16K x 8
Number of I/O 76
Oscillator Type Internal
Memory Size 256kB
Interface EBI/EMI, I2C, SCI, USART
Base Part Number DF70844
Frequency 80MHz
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series SuperH? SH7080
Published 2011
Packaging Tray
Operating Temperature -20°C~85°C TA

Physical

Number of Pins 112
Package / Case 112-LQFP
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 20 Weeks
