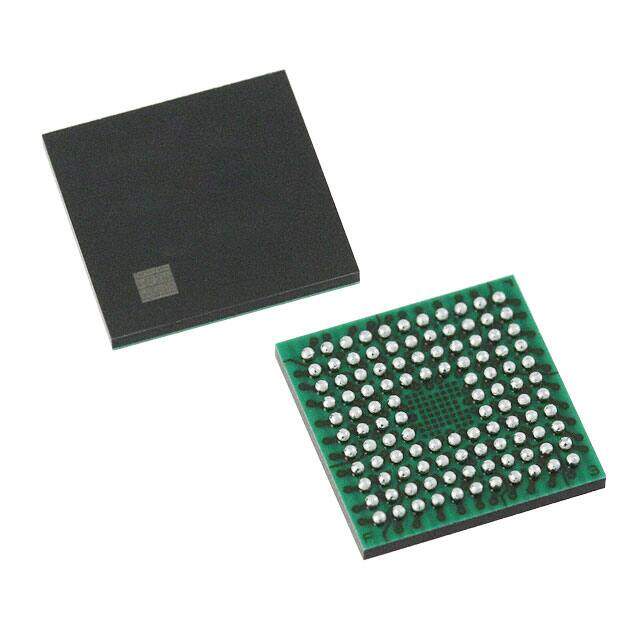

DF2215RBR24V image
Favorite
DF2215RBR24V image
Favorite
RoHS
RoHS RoHS compliant
Package 112-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 112BGA
PDF
/
Buying Options
Total Price: USD $16.08
Unit Price: USD $16.0776
≥1 USD $16.0776
Inventory: 90
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Number of Timers/Counters 2
Data Bus Width 16b
Access Time 24 μs
Data Converter A/D 6x10b; D/A 2x8b
Connectivity SCI, SmartCard, USB
Program Memory Size 256KB 256K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals DMA, POR, PWM, WDT
Core Processor H8S/2000
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
RAM Size 20K x 8
Number of I/O 68
Oscillator Type External
Memory Size 256kB
Interface SCI, USB
Operating Supply Voltage 3.3V
Base Part Number DF2215
Frequency 24MHz
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series H8? H8S/2200
Published 2009
Packaging Tray
Operating Temperature -20°C~75°C TA

Physical

Number of Pins 112
Package / Case 112-LFBGA
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 24 Weeks
