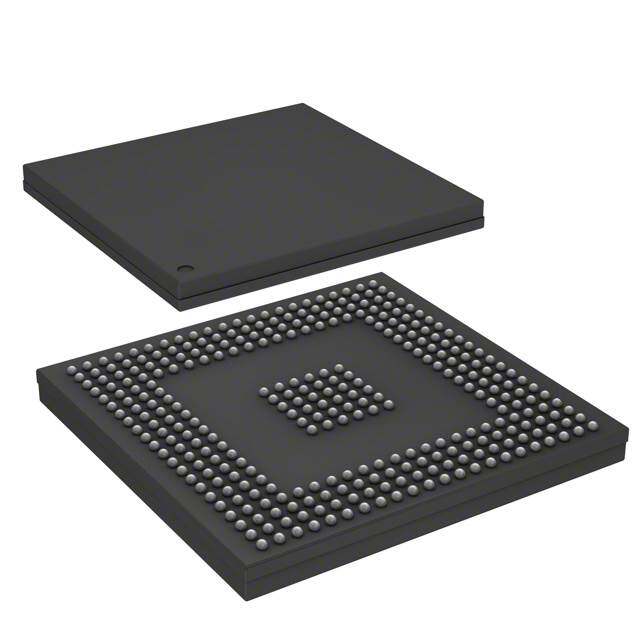

SPC5644AF0MVZ2R
RoHS
RoHS compliant
RoHS compliantPackage 324-BBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32-bit Microcontrollers - MCU 32BIT3MB Flsh192KRAM
PDF
/
Buying Options
Total Price: USD $54.48
Unit Price: USD $54.482314
≥1 USD $54.482314
≥10 USD $51.398408
≥100 USD $48.489064
≥500 USD $45.744408
≥1000 USD $43.155096
Inventory: 1330
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 23mm
Length 23mm
Technical
External Data Bus Width 16
Screening Level AEC-Q100
ROM (words) 4194304
Address Bus Width 22
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 40x12b
Bit Size 32
Supply Current-Max 400mA
Connectivity CANbus, EBI/EMI, LINbus, SCI, SPI
Program Memory Size 4MB 4M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 80MHz
Peripherals DMA, POR, PWM, WDT
Core Processor e200z4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.14V~5.25V
RAM Size 192K x 8
Speed 120MHz
Number of I/O 151
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.14V
Power Supplies 1.23.35V
Supply Voltage-Max (Vsup) 1.32V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B324
Base Part Number SPC5644
Terminal Pitch 1mm
Supply Voltage 1.2V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Number of Terminations 324
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series MPC56xx Qorivva
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 324-BBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
