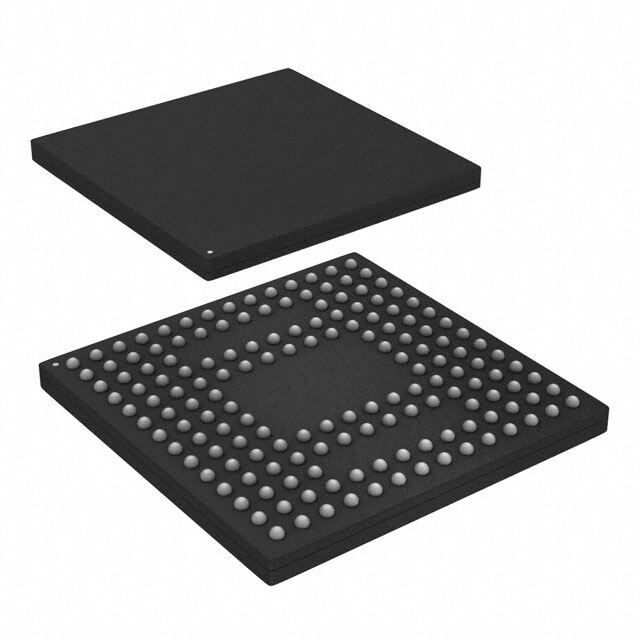

SCF5249VM140
RoHS
RoHS compliant
RoHS compliantPackage 160-BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT ROMLESS 160MAPBGA
PDF
/
Buying Options
Total Price: USD $31.13
Unit Price: USD $31.1256
≥1 USD $31.1256
Inventory: 884
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 15mm
Length 15mm
Height Seated (Max) 1.75mm
Technical
Integrated Cache YES
Format FIXED POINT
External Data Bus Width 16
Low Power Mode YES
Boundary Scan YES
Address Bus Width 24
Data Converter A/D 4x12b
Bit Size 32
Connectivity I2C, IDE, Memory Card, SPI, UART/USART
Core Size 32-Bit
Program Memory Type ROMless
Clock Frequency 33.86MHz
Peripherals DMA, I2S, POR, Serial Audio, WDT
Core Processor Coldfire V2
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Voltage - Supply (Vcc/Vdd) 3V~3.6V
RAM Size 96K x 8
Speed 140MHz
Number of I/O 47
Oscillator Type External
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B160
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991.A.2
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
JESD-609 Code e1
Series MCF524x
Published 2001
Packaging Bulk
Operating Temperature 0°C~70°C TA
Physical
Surface Mount YES
Package / Case 160-BGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
