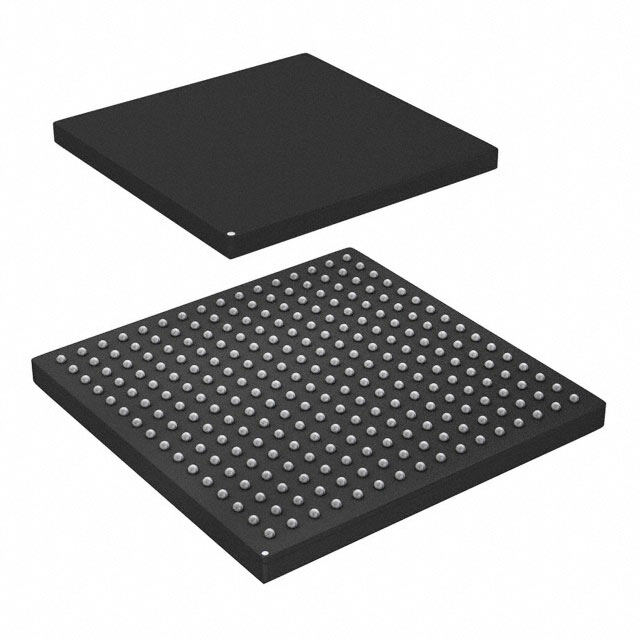

SCF5235F4CVM150
RoHS
RoHS compliant
RoHS compliantPackage 256-LBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MPU MCF5xxx RISC 32-Bit 0.13um 150MHz 256-Pin MAP-BGA Brick
PDF
/
Inventory: 4315
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 256-LBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2004
Series MCF523x
JESD-609 Code e1
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 256
ECCN Code 5A002.A.1
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature LOW POWER MODE TAKEN FROM LOW POWER MODE
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.5V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 40
JESD-30 Code S-PBGA-B256
Supply Voltage-Max (Vsup) 1.6V
Supply Voltage-Min (Vsup) 1.4V
Oscillator Type External
Number of I/O 97
Speed 150MHz
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 1.4V~1.6V
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor Coldfire V2
Peripherals DMA, WDT
Clock Frequency 75MHz
Program Memory Type ROMless
Core Size 32-Bit
Connectivity CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART
Bit Size 32
Address Bus Width 24
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 32
Format FIXED POINT
Integrated Cache YES
Dimensions
Height Seated (Max) 1.6mm
Length 17mm
Width 17mm
Compliance
RoHS Status ROHS3 Compliant
