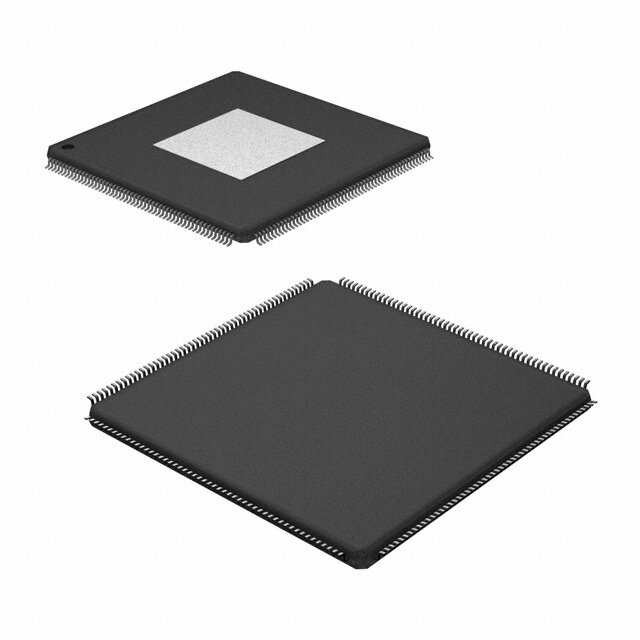

SAC57D54HCVLT
RoHS
RoHS compliant
RoHS compliantPackage 208-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
NXP SAC57D54HCVLT 32 Bit Microcontroller, ARMv7 - ISA, ARM Cortex-A5, ARM Cortex-M0, ARM Cortex-M4, 320 MHz, 4 MBNew
PDF
/
Buying Options
Total Price: USD $41.47
Unit Price: USD $41.47415
≥1 USD $41.47415
≥10 USD $34.02995
≥100 USD $32.9669
≥500 USD $31.90385
≥1000 USD $30.83985
Inventory: 1295
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 28mm
Length 28mm
Technical
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 24x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI
Program Memory Size 4MB 4M x 8
Core Size 32-Bit Tri-Core
Program Memory Type FLASH
Clock Frequency 40MHz
Peripherals DMA, LCD, LVD/HVD, POR, PWM, WDT
Core Processor ARM? Cortex?-A5, -M4, -M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 3.15V~5.5V
RAM Size 2.3M x 8
Speed 80MHz, 160MHz, 320MHz
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.2V
Supply Voltage-Max (Vsup) 1.32V
Terminal Pitch 0.5mm
Supply Voltage 1.25V
Terminal Form GULL WING
Terminal Position QUAD
Number of Terminations 208
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series MAC57Dxxx
Published 2016
Packaging Bulk
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 208-LQFP Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
