S711E20E0VFNE2
RoHS
RoHS compliant

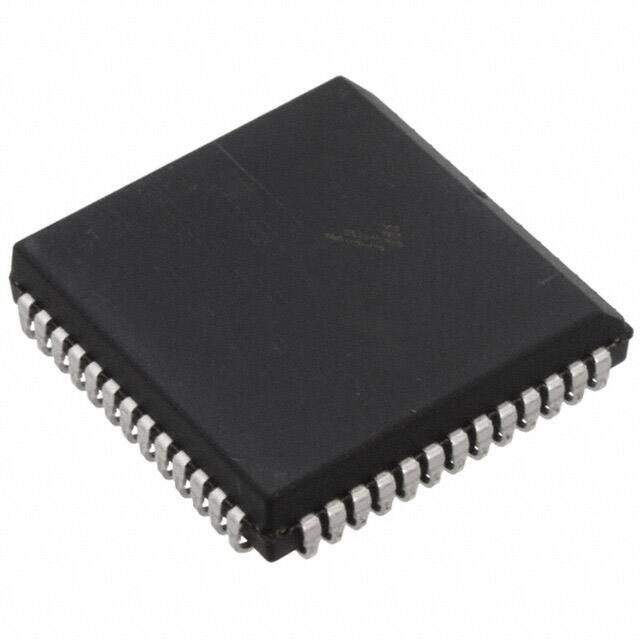

RoHS compliantPackage 52-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 20KB OTP 52PLCC
PDF
/
Inventory: 1503
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 19.125mm
Length 19.125mm
Technical
External Data Bus Width 8
EEPROM Size 512 x 8
Address Bus Width 16
PWM Channels NO
DMA Channels NO
Has ADC YES
Data Converter A/D 8x8b
Bit Size 8
Connectivity SCI, SPI
Program Memory Size 20KB 20K x 8
Core Size 8-Bit
Program Memory Type OTP
Clock Frequency 8MHz
Peripherals POR, WDT
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
RAM Size 768 x 8
Speed 2MHz
Number of I/O 38
Oscillator Type Internal
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 5.5V
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 250
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 52
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
JESD-609 Code e3
Series HC11
Published 1993
Packaging Tube
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 52-LCC (J-Lead)
Mounting Type Surface Mount
