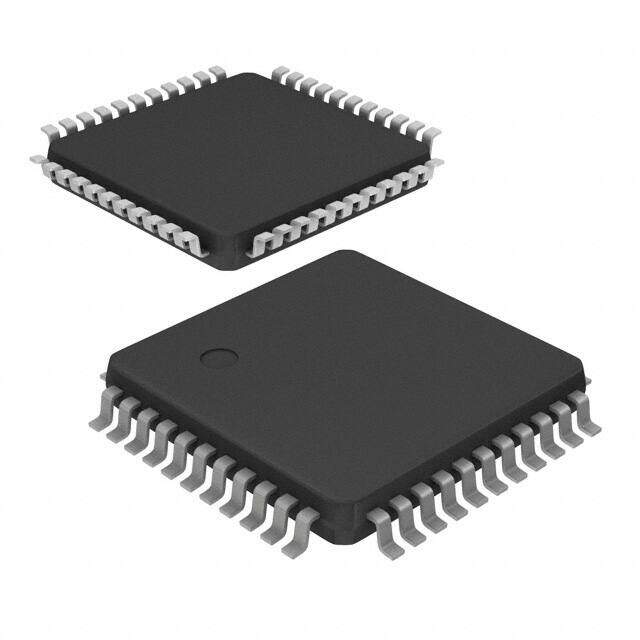

P87C654X2BBD,157
RoHS
RoHS compliant
RoHS compliantPackage 44-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC 80C51 MCU 16K OTP 44-LQFP
PDF
/
Inventory: 5272
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
RAM Size 256 x 8
Speed 33MHz
Number of I/O 32
Oscillator Type Internal
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
JESD-30 Code S-PQFP-G44
Pin Count 44
Base Part Number P87C654
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.8mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Additional Feature ALSO OPERATES AT 2.7V MINIMUM SUPPLY @ 16MHZ
Terminal Finish Tin (Sn)
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Series 87C
Published 2004
Packaging Tray
Operating Temperature 0°C~70°C TA
External Data Bus Width 8
ROM (words) 16384
Address Bus Width 16
DAC Channels NO
PWM Channels NO
DMA Channels NO
Has ADC NO
Bit Size 8
Supply Current-Max 18.5mA
Connectivity I2C, UART/USART
Program Memory Size 16KB 16K x 8
Core Size 8-Bit
Program Memory Type OTP
Clock Frequency 33MHz
Peripherals POR, WDT
Core Processor 8051
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
Physical
Surface Mount YES
Package / Case 44-LQFP
Mounting Type Surface Mount
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 1.6mm
