MKL16Z64VFT4
RoHS
RoHS compliant

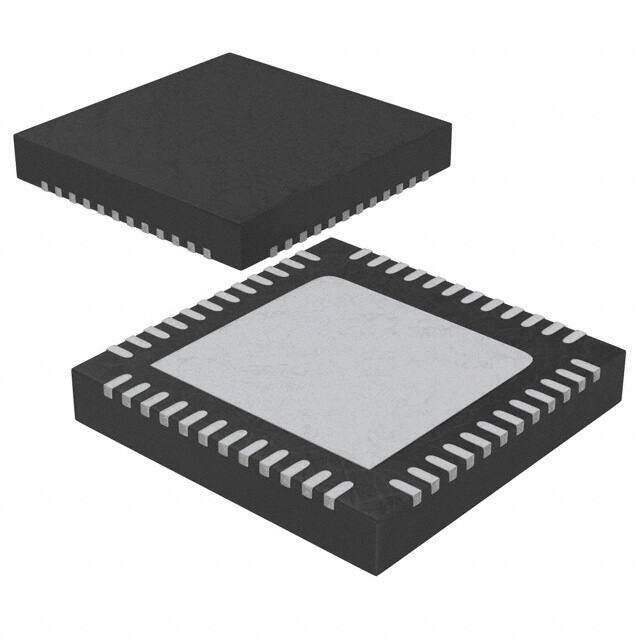

RoHS compliantPackage 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU CORTEX M0+ 64K FLASH
PDF
/
Buying Options
Total Price: USD $3.3
Unit Price: USD $3.3
≥1 USD $3.3
≥10 USD $2.57752
≥100 USD $2.11156
≥500 USD $2.067138
≥1000 USD $1.906414
Inventory: 1108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~105°C TA
Packaging Tray
Published 2002
Series Kinetis KL1
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
ECCN Code 3A991.A.2
Additional Feature DIFFERENTIAL ANALOG CHANNEL INPUTS: 6-CH 16-BIT
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number MKL16Z64
JESD-30 Code S-XQCC-N48
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.71V
Oscillator Type Internal
Number of I/O 40
Speed 48MHz
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M0+
Peripherals Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 64KB 64K x 8
Connectivity I2C, LINbus, SPI, TSI, UART/USART
Bit Size 32
Data Converter A/D - 16bit; D/A - 12bit
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Dimensions
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
