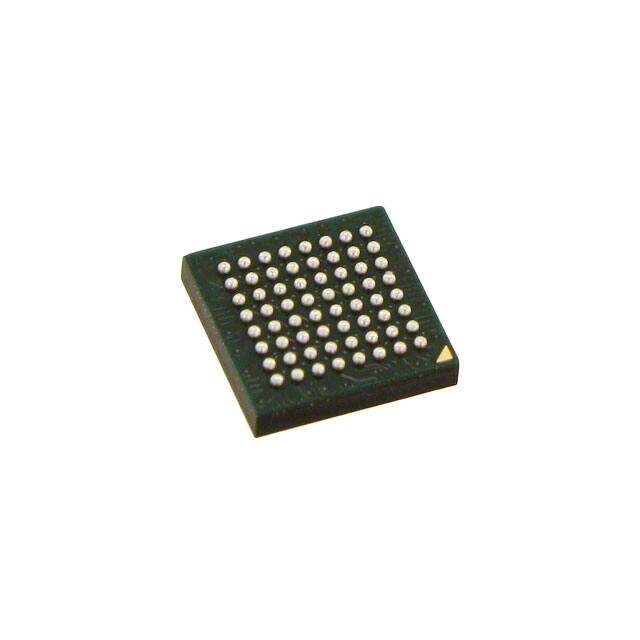

MK10DX128VMP5
RoHS
RoHS compliant
RoHS compliantPackage 64-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
NXP MK10DX128VMP5 32 Bit Microcontroller, ARM Cortex-M4, 50 MHz, 128 KB, 16 KB, 64 Pins, MAPBGA
PDF
/
Buying Options
Total Price: USD $123.91
Unit Price: USD $123.91325
≥1 USD $123.91325
≥10 USD $119.78265
≥100 USD $107.3918
Inventory: 22
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 1.2mm
Technical
CPU Family CORTEX-M4
EEPROM Size 2K x 8
ROM (words) 131072
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 19x16b
Bit Size 32
Supply Current-Max 18.2mA
Connectivity I2C, IrDA, SPI, UART/USART
Program Memory Size 128KB 128K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 50MHz
Peripherals DMA, I2S, LVD, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
RAM Size 16K x 8
Speed 50MHz
Number of I/O 44
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.71V
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B64
Base Part Number MK10DX128
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Terminal Finish TIN SILVER COPPER
ECCN Code 3A991.A.2
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series Kinetis K10
Published 2002
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 64-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
