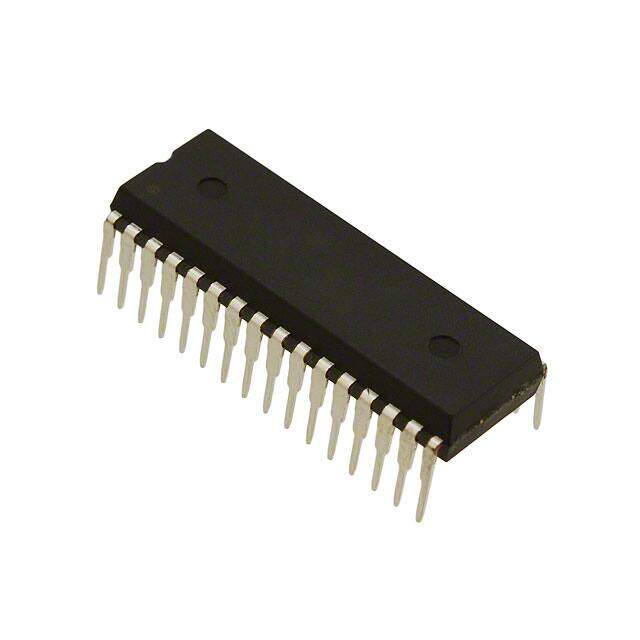

MC9S08FL8CBM
RoHS
RoHS compliant
RoHS compliantPackage 32-SDIP (0.400, 10.16mm)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
NXP MC9S08FL8CBM 8 Bit Microcontroller, S08FL, 20 MHz, 8 KB, 768 Byte, 32 Pins, DIP
PDF
/
Buying Options
Total Price: USD $14.03
Unit Price: USD $14.0334
≥1 USD $14.0334
≥10 USD $11.51495
≥100 USD $11.1549
≥500 USD $10.79485
≥1000 USD $10.4348
Inventory: 1244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 32-SDIP (0.400, 10.16mm)
Surface Mount NO
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2006
Series S08
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 32
ECCN Code 3A991.A.2
Terminal Finish MATTE TIN
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Technology CMOS
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 5V
Terminal Pitch 1.778mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MC9S08FL8
JESD-30 Code R-PDIP-T32
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4.5V
Oscillator Type Internal
Number of I/O 30
Speed 20MHz
RAM Size 768 x 8
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Peripherals LVD, PWM, WDT
Clock Frequency 20MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 8KB 8K x 8
Connectivity SCI
Bit Size 8
Data Converter A/D 12x8b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
ROM (words) 8192
Dimensions
Height Seated (Max) 4.9mm
Length 28.1mm
Width 8.89mm
Compliance
RoHS Status ROHS3 Compliant
