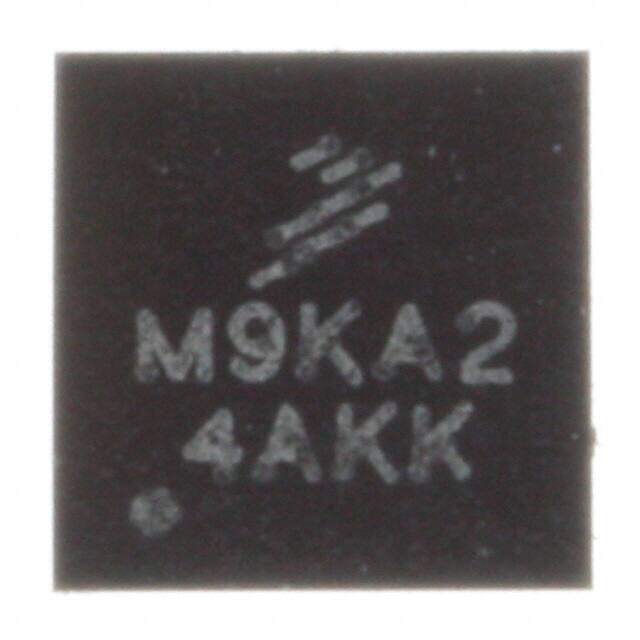

MC9RS08KA1CDBR
RoHS
RoHS compliant
RoHS compliantPackage 6-VDFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
RS08 RS08 Microcontroller IC 8-Bit 10MHz 1KB (1K x 8) FLASH 6-QFN-EP (3x3)
PDF
/
Buying Options
Total Price: USD $48.97
Unit Price: USD $48.97345
≥1 USD $48.97345
≥10 USD $40.1831
≥100 USD $38.9272
≥500 USD $37.67225
≥1000 USD $36.41635
Inventory: 1371
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 6-VDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2004
Series RS08
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Terminal Pitch 0.95mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number MC9RS08KA1
JESD-30 Code S-XQCC-N6
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 1.8V
Oscillator Type Internal
Number of I/O 2
Speed 10MHz
RAM Size 63 x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Peripherals LVD, POR, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 1KB 1K x 8
Supply Current-Max 6.5mA
Bit Size 8
Has ADC NO
DMA Channels NO
PWM Channels NO
DAC Channels NO
Dimensions
Height Seated (Max) 1mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
