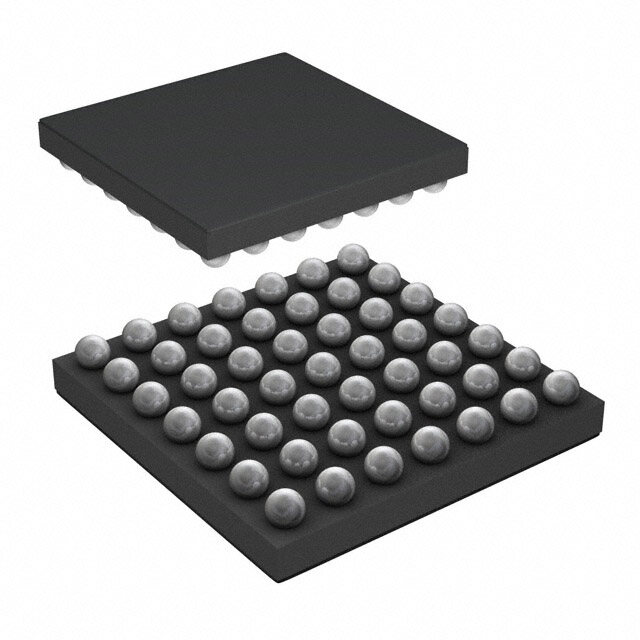

LPC54101J256UK49Z
RoHS
RoHS compliant
RoHS compliantPackage 49-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU 32bit ARM Cortex-M4F MCU
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0656
≥1 USD $4.0656
Inventory: 1260
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.29mm
Length 3.29mm
Height Seated (Max) 0.58mm
Technical
RAM (bytes) 106496
On Chip Program ROM Width 8
ROM (words) 262144
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 12x12b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 25MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 104K x 8
Speed 100MHz
Number of I/O 39
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code S-PBGA-B49
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 49
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LPC54100
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 49-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
Alternative Model
