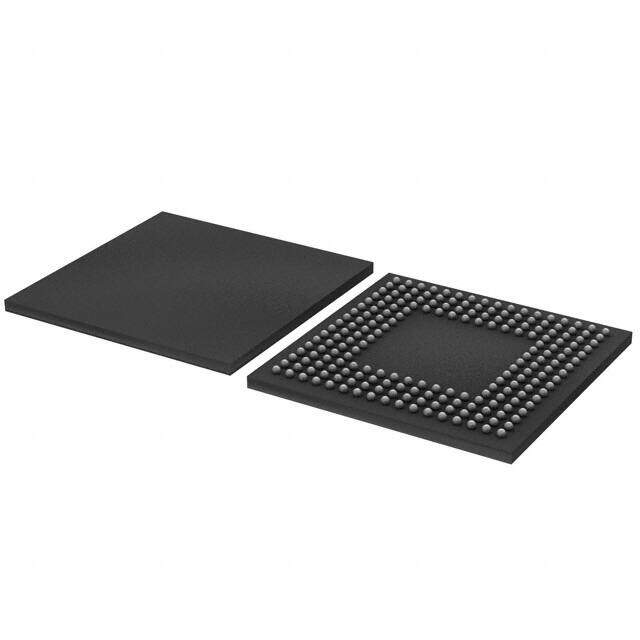

LPC4088FET208,551
RoHS
RoHS compliant
RoHS compliantPackage 208-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 512KB FLASH 208BGA
PDF
/
Buying Options
Total Price: USD $71.38
Unit Price: USD $71.38348
≥1 USD $71.38348
≥10 USD $67.3429
≥100 USD $63.53104
≥500 USD $59.93494
≥1000 USD $56.5424
Inventory: 1350
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 208-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2007
Series LPC40xx
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 208
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Microcontrollers
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Base Part Number LPC4088
Pin Count 208
JESD-30 Code S-PBGA-B208
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3.3V
Supply Voltage-Min (Vsup) 2.4V
Oscillator Type Internal
Number of I/O 165
Speed 120MHz
RAM Size 96K x 8
Voltage - Supply (Vcc/Vdd) 2.4V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Clock Frequency 25MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 512KB 512K x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG
Bit Size 32
Data Converter A/D 8x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
ROM (words) 524288
EEPROM Size 4032 x 8
CPU Family CORTEX-M4
Dimensions
Length 15mm
Width 15mm
Compliance
RoHS Status ROHS3 Compliant
