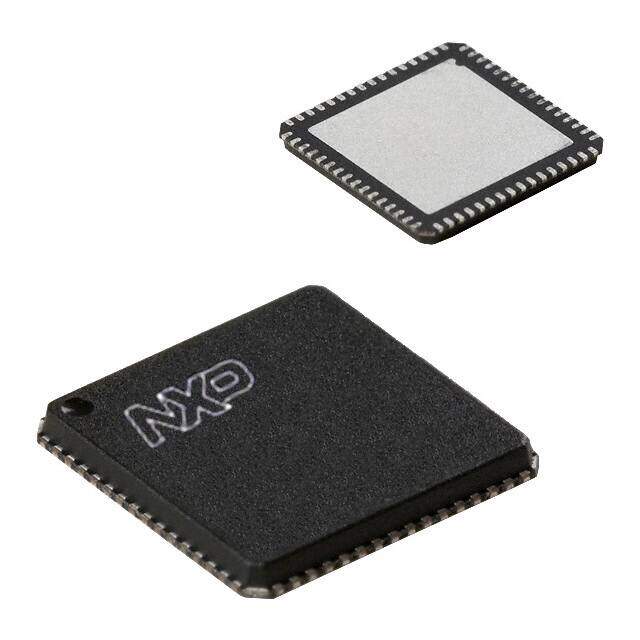

LPC2132FHN64/01,55
RoHS
RoHS compliant
RoHS compliantPackage 64-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
NXP LPC2132FHN64/01,55, 16/32bit ARM7TDMI-S Microcontroller, 60MHz, 64 kB Flash, 64-Pin HVQFN
PDF
/
Buying Options
Total Price: USD $42.32
Unit Price: USD $42.324797
≥1 USD $42.324797
≥10 USD $39.929055
≥100 USD $37.668923
≥500 USD $35.536712
≥1000 USD $33.525206
Inventory: 1148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 1mm
Technical
External Data Bus Width 8
ROM (words) 65536
Address Bus Width 8
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 8x10b; D/A 1x10b
Bit Size 32
Connectivity I2C, Microwire, SPI, SSI, SSP, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 16/32-Bit
Program Memory Type FLASH
Clock Frequency 60MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor ARM7?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 3V~3.6V
RAM Size 16K x 8
Speed 60MHz
Number of I/O 47
Oscillator Type Internal
Supply Voltage-Min (Vsup) 3V
Power Supplies 3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code S-PQCC-N64
Pin Count 64
Base Part Number LPC2132
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Terminal Finish TIN
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Series LPC2100
Published 2007
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 64-VFQFN Exposed Pad
Mounting Type Surface Mount
Alternative Model
