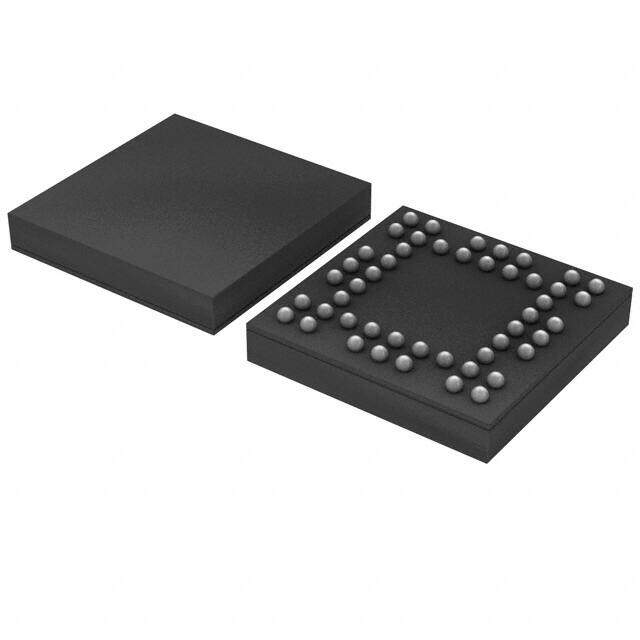

LPC11U24FET48/301,
RoHS
RoHS compliant
RoHS compliantPackage 48-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU CortexM0 32bit 32KB with USB
PDF
/
Buying Options
Total Price: USD $12
Unit Price: USD $12.0004
≥1 USD $12.0004
≥10 USD $9.84675
≥100 USD $9.53895
≥500 USD $9.23115
≥1000 USD $8.92335
Inventory: 1199
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.5mm
Length 4.5mm
Height Seated (Max) 1.1mm
Technical
CPU Family CORTEX-M0
EEPROM Size 2K x 8
ROM (words) 32768
DAC Channels NO
PWM Channels NO
DMA Channels NO
Has ADC YES
Data Converter A/D 8x10b
Bit Size 32
Connectivity I2C, Microwire, SPI, SSI, SSP, UART/USART, USB
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 25MHz
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor ARM? Cortex?-M0
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 8K x 8
Speed 50MHz
Number of I/O 40
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.8V
Power Supplies 3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B48
Pin Count 48
Base Part Number LPC11U
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 48
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e1
Series LPC11Uxx
Published 2010
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 48-TFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
