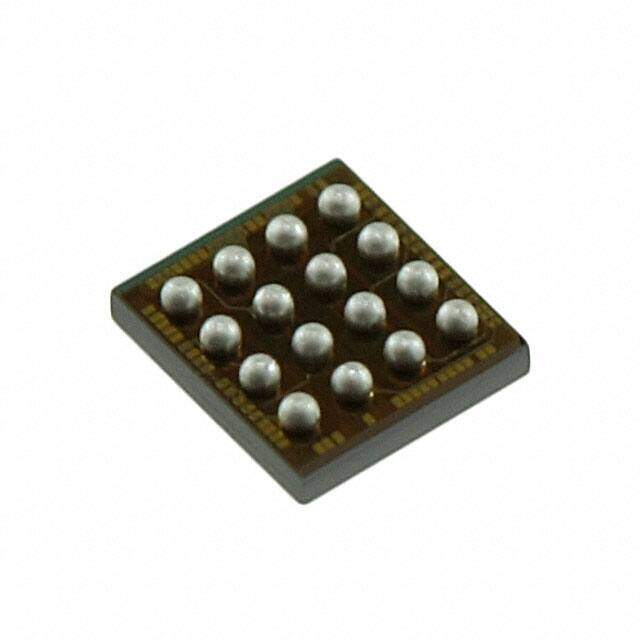

LPC1102UK,118
RoHS
RoHS compliant
RoHS compliantPackage 16-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-bit LPC11xx ARM Cortex M0 RISC 32KB Flash 2.5V/3.3V 16-Pin WLCSP T/R
PDF
/
Buying Options
Total Price: USD $5.11
Unit Price: USD $5.1128
≥1 USD $5.1128
≥10 USD $3.98992
≥100 USD $3.268936
≥500 USD $3.20019
≥1000 USD $2.698951
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2010
Series LPC1102
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 16
JESD-30 Code R-PBGA-B16
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3.3V
Supply Voltage-Min (Vsup) 1.8V
Oscillator Type Internal
Number of I/O 11
Speed 50MHz
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M0
Peripherals Brown-out Detect/Reset, POR, WDT
Clock Frequency 25MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 32KB 32K x 8
Connectivity SPI, UART/USART
Bit Size 32
Data Converter A/D 5x10b
Has ADC YES
DMA Channels NO
PWM Channels NO
DAC Channels NO
ROM (words) 32768
CPU Family CORTEX-M0
RAM (bytes) 8192
Dimensions
Height Seated (Max) 0.65mm
Length 2.32mm
Width 2.17mm
Compliance
RoHS Status ROHS3 Compliant
