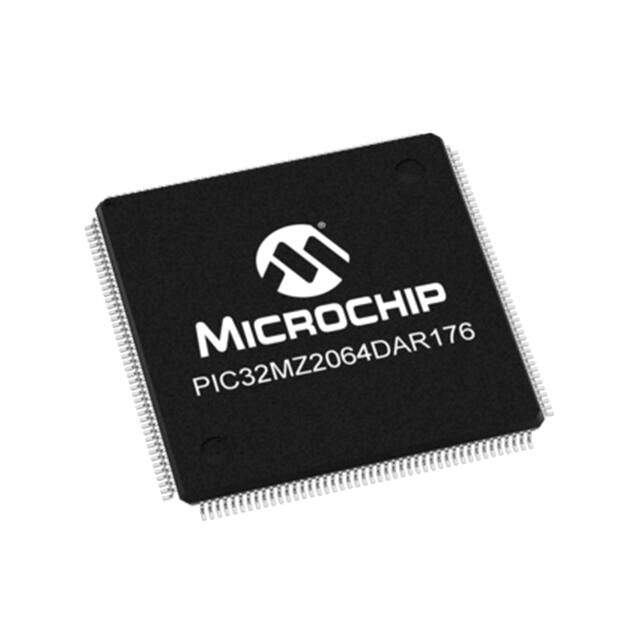

PIC32MZ2064DAR176-I/2J
RoHS
RoHS compliant
RoHS compliantPackage 176-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32-Bit Cache-Based Mcu, Graphics Integrated, Stacked Ddr2 176 Lqfp 20X20X1.4Mm Tray
PDF
/
Buying Options
Total Price: USD $23.27
Unit Price: USD $23.2672
≥1 USD $23.2672
≥10 USD $21.3312
≥100 USD $19.333688
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
External Data Bus Width 16
Screening Level TS 16949
On Chip Program ROM Width 8
Address Bus Width 24
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 45x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 64MHz
Peripherals Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT
Core Processor MIPS32? microAptiv?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.7V~1.9V
RAM Size 640K x 8
Speed 200MHz
Number of I/O 120
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.7V
Supply Voltage-Max (Vsup) 1.9V
JESD-30 Code S-PQFP-G176
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Number of Terminations 176
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series PIC? 32MZ DAR
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 176-LQFP Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
