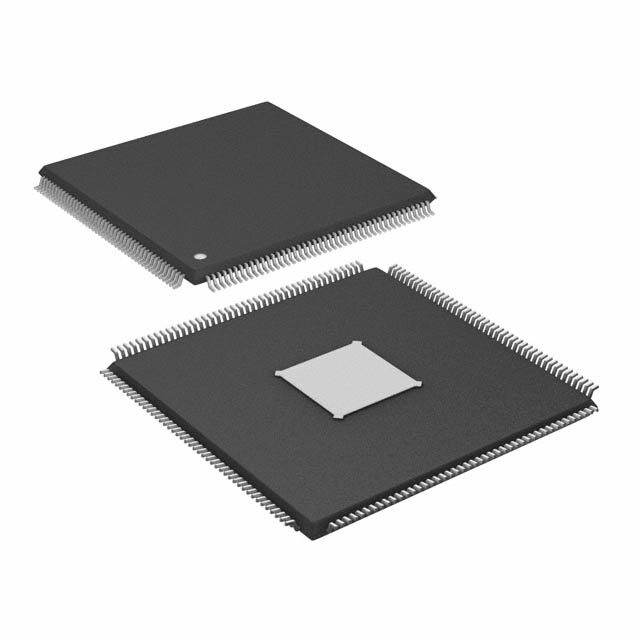

PIC32MZ2025DAH176-I/2J
RoHS
RoHS compliant
RoHS compliantPackage 176-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 176LQFP
PDF
/
Buying Options
Total Price: USD $21.6
Unit Price: USD $21.604
≥1 USD $21.604
≥10 USD $19.8
≥100 USD $17.9256
Inventory: 135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Surface Mount
Package / Case 176-LQFP Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2018
Series PIC? 32MZ DA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 176
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PIC32MZ2025DA
JESD-30 Code S-PQFP-G176
Supply Voltage-Max (Vsup) 1.9V
Supply Voltage-Min (Vsup) 1.7V
Oscillator Type Internal
Number of I/O 120
Speed 200MHz
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor MIPS32? microAptiv?
Peripherals Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT
Clock Frequency 64MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 2MB 2M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG
Bit Size 32
Data Converter A/D 45x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Address Bus Width 24
On Chip Program ROM Width 8
Screening Level TS 16949
External Data Bus Width 16
Dimensions
Height Seated (Max) 1.6mm
Length 20mm
Width 20mm
Compliance
RoHS Status ROHS3 Compliant
