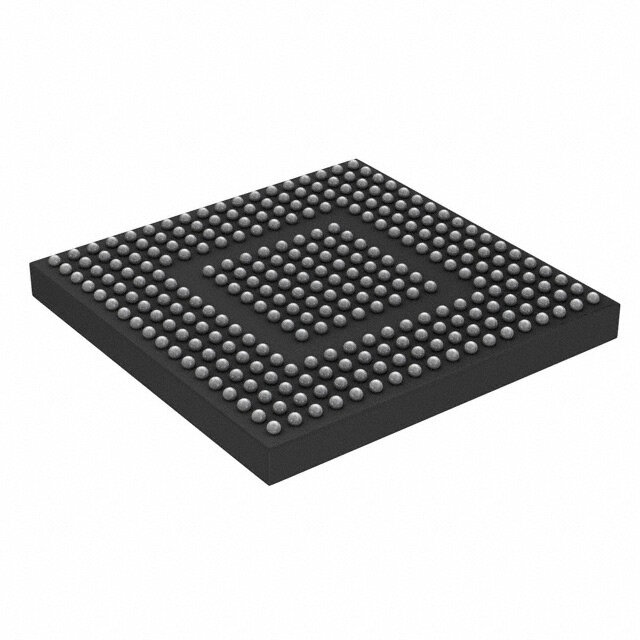

PIC32MZ2025DAA288-I/4J image
Favorite
PIC32MZ2025DAA288-I/4J image
Favorite

PIC32MZ2025DAA288-I/4J

Microchip Technology
RoHS
RoHS RoHS compliant
Package 288-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 32BIT 2MB FLASH 288LFBGA
PDF
/
Inventory: 5198
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 15mm
Length 15mm
Height Seated (Max) 1.4mm

Technical

External Data Bus Width 16
Screening Level TS 16949
On Chip Program ROM Width 8
Address Bus Width 24
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 45x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 64MHz
Peripherals Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT
Core Processor MIPS32? microAptiv?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
RAM Size 256K x 8
Speed 200MHz
Number of I/O 120
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.7V
Supply Voltage-Max (Vsup) 1.9V
JESD-30 Code S-PBGA-B288
Base Part Number PIC32MZ2025DA
Terminal Pitch 0.8mm
Supply Voltage 1.8V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 288
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series PIC? 32MZ DA
Packaging Tray
Operating Temperature -40°C~85°C TA

Physical

Surface Mount YES
Package / Case 288-LFBGA
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
