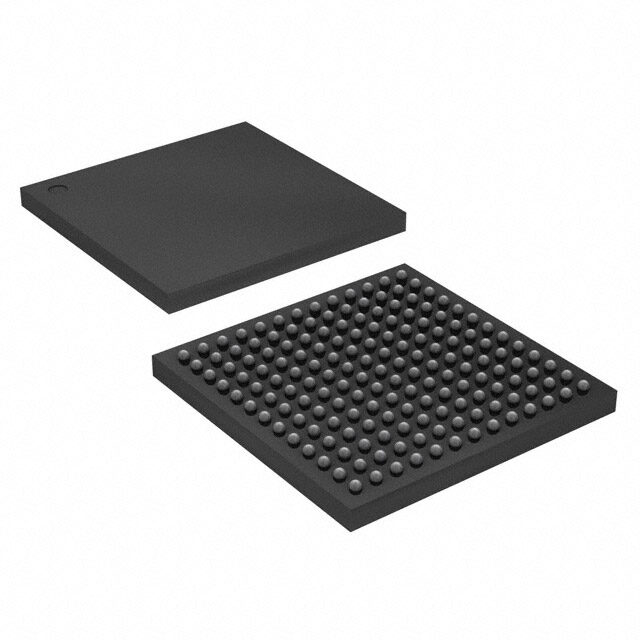

PIC32MZ1025DAS169-I/6J
RoHS
RoHS compliant
RoHS compliantPackage 169-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32-BIT CACHE-BASED MCU GRAPHICS
PDF
/
Inventory: 2030
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 11mm
Length 11mm
Height Seated (Max) 1.56mm
Technical
External Data Bus Width 16
Screening Level TS 16949
On Chip Program ROM Width 8
Address Bus Width 24
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 45x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG
Program Memory Size 1MB 1M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 64MHz
Peripherals Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT
Core Processor MIPS32? microAptiv?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.7V~1.9V
RAM Size 256K x 8
Speed 200MHz
Number of I/O 120
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.7V
Supply Voltage-Max (Vsup) 1.9V
JESD-30 Code S-PBGA-B169
Terminal Pitch 0.8mm
Supply Voltage 1.8V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 169
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series PIC? 32MZ DAS
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 169-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 3 Weeks
