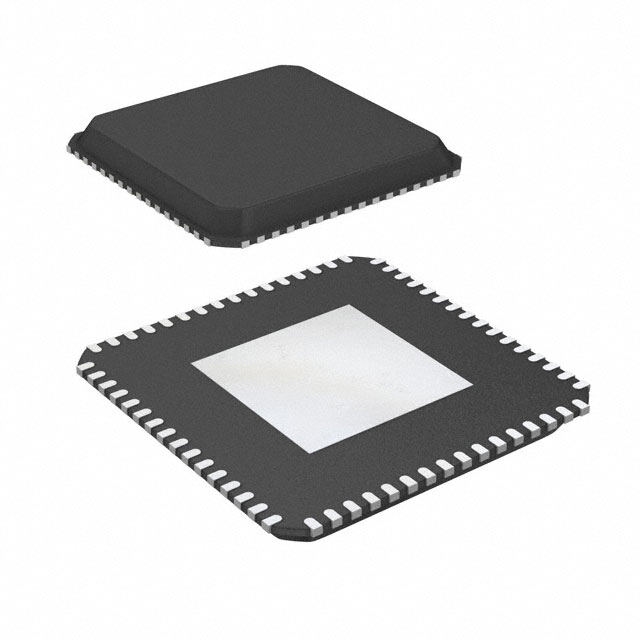

PIC32MX450F128HT-V/RG
RoHS
RoHS compliant
RoHS compliantPackage 64-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
100MHz,2 analog comp.,2I2C,2SPI/I2S, 28 Ch. ADC,RTCC,DMA,PMP,USB
PDF
/
Inventory: 6661
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 64
Technical
Operating Temperature -40°C~105°C TA
Packaging Tape & Reel (TR)
Published 2015
Series PIC? 32MX
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
Additional Feature AEC-Q100 REVG (GRADE 2 -40 DEGC TO +105 DEGC) PLANNED, ALSO AVAILABLE 2 DEDICATED DMA CHANNELS
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 80MHz
Base Part Number PIC32MX450F128H
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 2.5/3.3V
Supply Voltage-Min (Vsup) 2.3V
Interface I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Memory Size 128kB
Oscillator Type Internal
Number of I/O 49
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 2.3V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor MIPS32? M4K?
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 128KB 128K x 8
Connectivity I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG
Supply Current-Max 60mA
Bit Size 32
Data Converter A/D 28x10b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 7
ROM (words) 143360
Core Architecture PIC
On Chip Program ROM Width 8
CPU Family PIC
Number of Programmable I/O 53
Dimensions
Height Seated (Max) 0.9mm
Length 9mm
Compliance
RoHS Status ROHS3 Compliant
